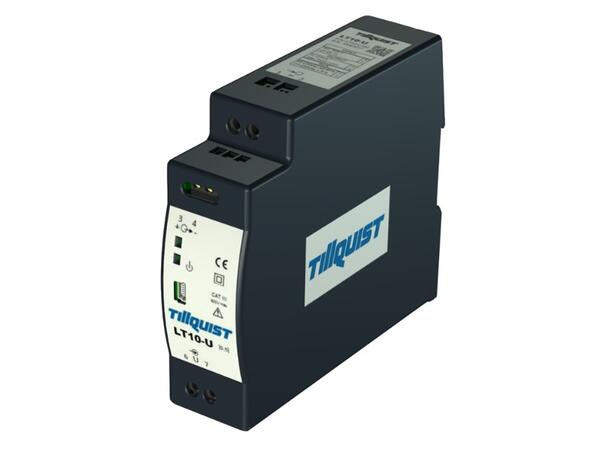

Hugo Tillquist LT10/U - Configurable Transducer

LT10U is a 1-channel configurable transducer for measuring AC voltage and frequency. This model supports the typical railroad frequency 16 2/3Hz.
The analogue output is freely configurable within the range 0–20 mA. LT10U can be supplied with a very wide voltage range.
Both the inputs and outputs are galvanically isolated.
Quick and easy configuration via USB using the free ConfigLQT software, no need for external power supply.

Characteristics:


• Voltage Range (Un): 12,5 - 125V Nominal
• Measuring Range: 0,03 - 150V True RMS
• Configurable Measuring Range: 0 - 150V
• Frequency measurement: 10...15...18...120 and 16 2/3 Hz.
• Supply voltage: 80-250 VAC / 24-250 VDC
• Class: 0.2
• Response time: <100 ms
• Analogue output (Configurable): 0–20mA, 0-5mA, 0-10mA, 0-20mA, 4-20mA
• Software: ConfigLQT
• Operation indicator: 2 x LED
