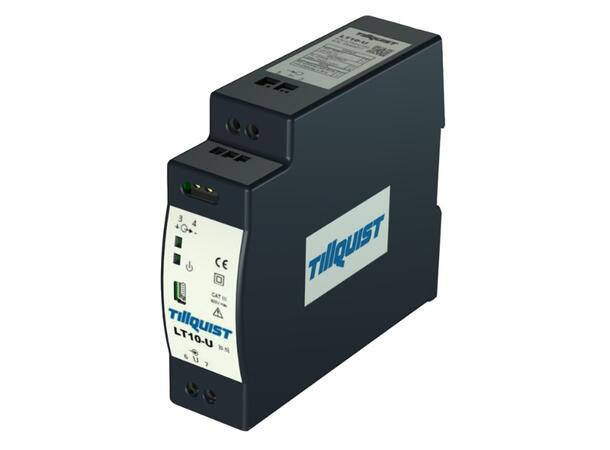

Hugo Tillquist LT10/U, Configurable transducer.

LT10U is a 1-channel configurable transducer for measuring AC voltage and frequency.
The analogue output is freely configurable within the range 0–20 mA. LT10U can be supplied with a very wide voltage range.
Both the inputs and outputs are galvanically isolated.
The configuration is easy and quick without needing a supply voltage using the free ConfigLQT software.

Characteristics:


• Voltage Range (Un): 50 - 500V Nominal
• Measuring Range: 0,15 - 600V True RMS
• Configurable Measuring Range: 0 - 500V
• Frequency measurement: 10...40...70...120 Hz
• Supply voltage: 80-250 VAC / 24-250 VDC
• Class: 0.2
• Response time: <100 ms
• Analogue output (Configurable): 0–20mA, 0-5mA, 0-10mA, 0-20mA, 4-20mA
• Software: ConfigLQT
• Operation indicator: 2 x LED
