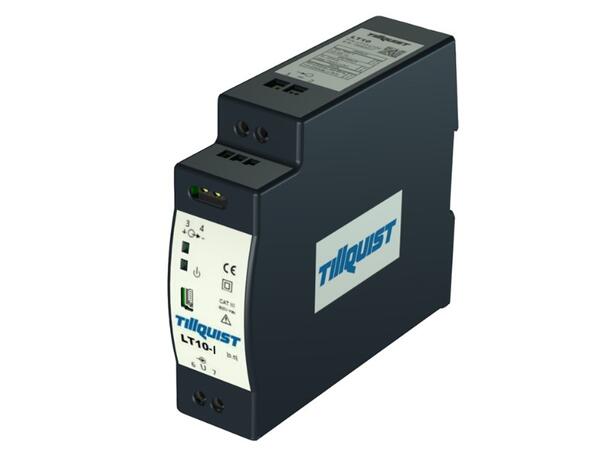

Hugo Tillquist LT10/I (16 2/3Hz), Configurable transducer.

LT10I is a 1-channel configurable transducer for measuring AC current and frequency 16 2/3Hz (typically railroad use).
The analogue output is freely configurable within the range 0–20 mA. LT10I can be supplied with a very wide voltage range.
Both the inputs and outputs are galvanically isolated.
The configuration is easy and quick without needing a supply voltage using the free ConfigLQT software.

Characteristics:


• AC measurement: 0,05-10 A true RMS (In 1, 2, 5A)
• Frequency measurement: 10…15….18…120 Hz
• Supply voltage: 80-250 VAC / 24-250 VDC
• Class: 0.2
• Response time: <100 ms
• Analogue output (Configurable): 0–20mA, 0-5A, 0-10mA, 0-20mA, 4-20mA
• Software: ConfigLQT
• Operation indicator: 2 x LED
