Westermo Merlin 3103 - Compact Industrial 5G Router
5G NSA/SA, 2 x GbE, Dual SIM, TPM, Secure Boot, 9–36 VDC
Version: Merlin-3103-T2G-PFO-DCi0936
The Westermo Merlin 3100 is a compact industrial cellular router that connects remote sites, substations and field equipment to central SCADA and control systems. The narrow full-metal housing fits into crowded cabinets, and with an isolated power input, a wide temperature range and EMC ratings for industrial environments, the router is built for long service in demanding installations. All variants share the same hardware platform, software and security architecture and differ only in the cellular modem – LTE Cat-4, 5G, LTE Cat-M/NB-IoT or 450 MHz private LTE – so one router platform can be standardised across an entire installed base.
Cybersecurity follows a security-by-design approach. The Merlin series is developed and manufactured by Westermo in Ireland, under a secure development lifecycle certified to IEC 62443-4-1 – from threat and risk analysis and secure design to vulnerability handling and controlled production. In the router, protection is anchored in hardware through a Trusted Platform Module and Secure Boot, and after delivery, vulnerabilities are handled by Westermo’s Product Security Incident Response Team (PSIRT) with published security advisories. Westermo is also aligning its portfolio with the EU Cyber Resilience Act (CRA) through a structured programme. For operators covered by NIS2, this provides a documented basis when assessing security in their supply chain.
Westermo Activator handles deployment and lifecycle management of the router fleet. Site-specific configurations are generated centrally and installed automatically along with the correct firmware, so every unit is commissioned the same way without configuration work on site. Routers can also be delivered factory pre-configured with SIMs or eSIMs installed. Throughout operation, Activator distributes firmware updates and configuration changes across the fleet without site visits, and the Monitor portal shows the status of every unit. This makes it practical to keep a large installed base patched and consistently configured for its full service life. Activator runs as a cloud service or on a privately installed server.
Key Features
- Industrial Build Quality

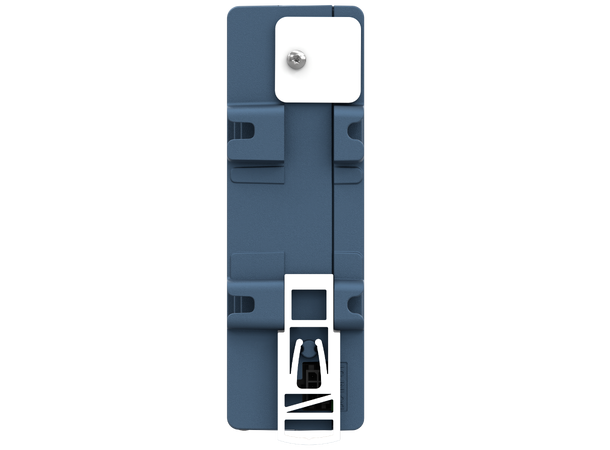

- Compact full-metal housing for crowded cabinets, DIN rail mounting
- Isolated 9–36 VDC power input
- EMC immunity and emission rated for industrial environments
- MTBF of 1 524 000 hours (Telcordia) and 5-year warranty
- Security by Design
- Developed and manufactured in Ireland (EU) under a secure development lifecycle certified to IEC 62443-4-1
- Trusted Platform Module (TPM) keeps cryptographic keys in dedicated hardware
- Secure Boot ensures only software signed by Westermo can run
- IPSec VPN, 802.1X authentication and stateful firewall as standard
- Coordinated vulnerability handling through Westermo PSIRT, with published security advisories
- Structured programme for alignment with the EU Cyber Resilience Act
- Zero-Touch Deployment and Lifecycle Management with Activator
- Site-specific configurations generated centrally and installed automatically, reducing the risk of misconfiguration
- Fleet-wide firmware, security and configuration updates without site visits
- Monitor portal for availability, real-time diagnostics and reporting
- Cloud service or privately installed server
- Optional factory pre-configuration with SIMs or eSIMs installed
- Cellular Connectivity
- Dual SIM for redundant connection to the control centre
- Modem options for public 4G and 5G networks, LTE Cat-M/NB-IoT and 450 MHz private LTE
- GNSS (GPS, GLONASS, BeiDou, Galileo) on LTE Cat-4 and 5G variants
- Industrial Protocols and Routing
- SCADA protocol conversion: IEC 60870-5-104, IEC 61850, Modbus TCP, DNP3 and MQTT
- BGP, OSPF, VRRP, VRF, VLAN and QoS
Typical Applications
- Energy and Smart Grid
- Secondary substation connectivity to control centres
- Remote monitoring and control of distributed grid assets
- Industry and Infrastructure
- SCADA and telemetry connectivity for remote sites
- Secure remote access for operation and maintenance
- Private LTE Networks
- Utility and critical infrastructure networks on 450 MHz (Band 31 and 72 variants)
Technical Specifications
| Specification |
Value |
| Cellular |
LTE Cat-4, 5G NR (SA/NSA), LTE Cat-M/NB-IoT or private LTE, depending on variant |
| SIM |
2 × Mini-SIM (2FF) |
| Ethernet |
2 × 10/100/1000 Mbit/s, RJ45 |
| GNSS |
GPS, GLONASS, BeiDou, Galileo (LTE Cat-4 and 5G variants) |
| Security |
TPM, Secure Boot, IPSec VPN, 802.1X, stateful firewall; developed under IEC 62443-4-1 |
| SCADA Protocols |
IEC 60870-5-104, IEC 61850, Modbus TCP, DNP3, MQTT |
| Power |
9–36 VDC isolated, 5–8 W typical depending on variant |
| Operating Temperature |
-40 to +70 °C |
| Housing |

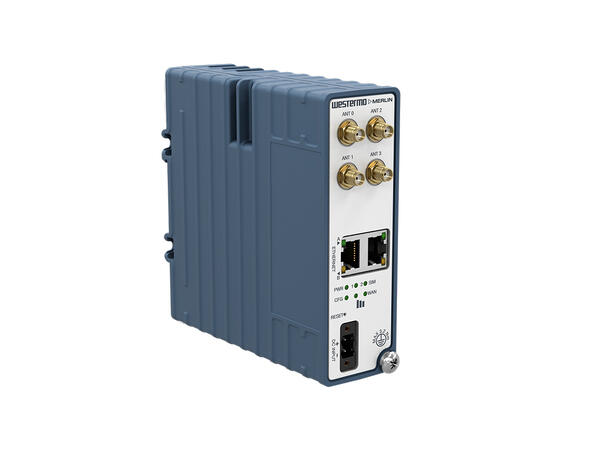

Full metal, IP30, DIN rail, 40 × 135 × 124 mm |
| MTBF / Warranty |
1 524 000 hours (Telcordia) / 5 years |
Available Variants
| Model |
Cellular |
Antenna Connectors |
GNSS |
| Merlin-3103-T2G-QFR-G-DCi0936 |
LTE Cat-4 |
3 × SMA |
Yes |
| Merlin-3103-T2G-PFO-DCi0936 |
5G NR (SA/NSA) with LTE fallback |

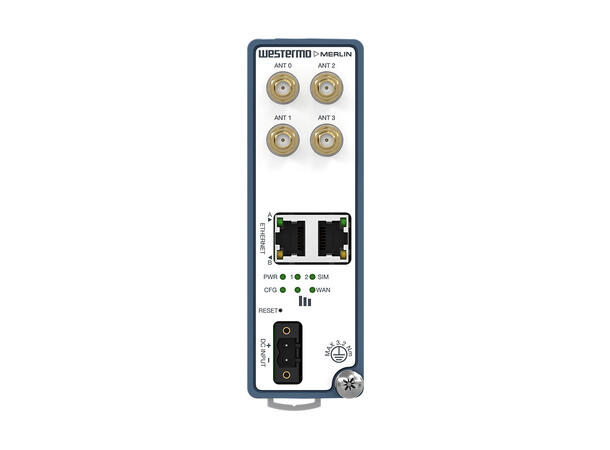

4 × SMA |
Yes |
| Merlin-3103-T2G-QFX-DCi0936 |
LTE Cat-M/NB-IoT |
1 × SMA |
No |
| Merlin-3103-T2G-PFN-DCi0936 |
450 MHz private LTE (Band 72) |
2 × SMA |
No |
| Merlin-3103-T2G-PFT-DCi0936 |
450 MHz private LTE (Band 31) and Band 40 |
2 × SMA |
No |
Certifications & Standards
- CE (Radio Equipment Directive)
- EN/IEC 61000-6-2 and EN/IEC 61000-6-4 (EMC, industrial environments)
- EN 62368-1 (Safety, communication technology)
- IEC 62443-4-1 (Westermo secure development lifecycle)
