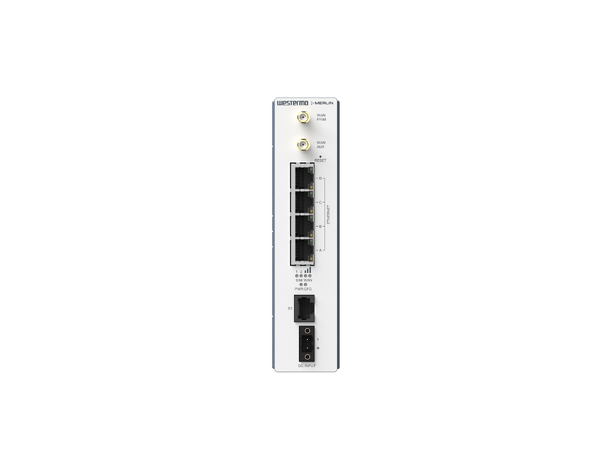

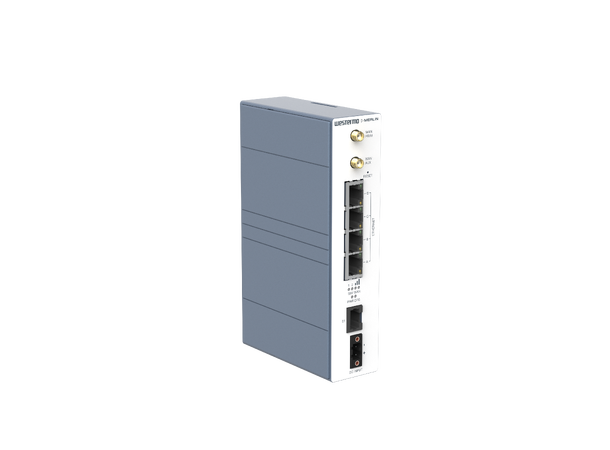

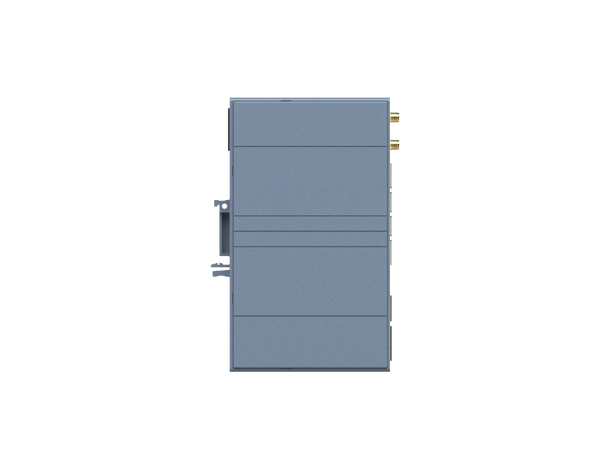

Westermo Merlin 4106 - Industrial LTE Cellular Router
LTE Cat 4, 4 x FE, RS-232/DI, Dual SIM, TPM, 9.6–60 VDC
Version: Merlin-4106-T4-S1-DI1-QFZ (LTE Cat 4)
The Westermo Merlin 4100 is a compact industrial LTE router that connects substations, remote sites and field equipment to central SCADA and control systems. In addition to four Ethernet ports, it has a combined serial and digital input port, so serial equipment and modem-based installations can be moved onto an IP network with the same router. The built-in protocol gateway lets devices that use different protocols on site be reached through one common protocol from the control centre. With a wide isolated power input and all interfaces on the front, the router is made for installation in station and field cabinets, and it is available with LTE Cat 4 or LTE Cat-M1/NB-IoT.
Cybersecurity follows a security-by-design approach. The Merlin series is developed and manufactured by Westermo in Ireland, under a secure development lifecycle certified to IEC 62443-4-1 – from threat and risk analysis and secure design to vulnerability handling and controlled production. In the router, protection is anchored in hardware through a Trusted Platform Module and Secure Boot, while VPN, 802.1X and a stateful firewall secure the device both locally and across public or private networks. After delivery, vulnerabilities are handled by Westermo’s Product Security Incident Response Team (PSIRT) with published security advisories, and Westermo is aligning its portfolio with the EU Cyber Resilience Act (CRA) through a structured programme. For operators covered by NIS2, this provides a documented basis when assessing security in their supply chain.
Westermo Activator handles deployment and lifecycle management of the router fleet. Site-specific configurations are generated centrally and installed automatically, so every unit is commissioned the same way without configuration work on site. Throughout operation, firmware is updated over the air and configuration changes are rolled out across the fleet without site visits. This makes it practical to keep a large installed base patched and consistently configured for its full service life. Activator runs as a cloud service or on a privately installed server.
Key Features
- Serial Migration and Protocol Conversion
- Dual-use RJ45 port, software configurable as RS-232 serial or dry-contact digital input
- Moves serial and modem-based installations onto an IP network
- SCADA protocol conversion: IEC 60870-5-101/104, IEC 61850, Modbus RTU/TCP, DNP3 and MQTT
- RTU functions: I/O monitoring from the SCADA master and basic PLC logic
- Built for Industrial Sites
- Compact DIN rail unit with all LEDs and interfaces on the front
- Isolated 9.6–60 VDC power input, covering 12, 24 and 48 V station supplies
- EMC immunity and emission rated for industrial environments
- MTBF of 1 700 000 hours (Telcordia) and 5-year warranty
- Security by Design
- Developed and manufactured in Ireland (EU) under a secure development lifecycle certified to IEC 62443-4-1
- Trusted Platform Module (TPM) keeps cryptographic keys in dedicated hardware
- Secure Boot ensures only software signed by Westermo can run
- IPSec and OpenVPN, 802.1X authentication and stateful firewall as standard
- Coordinated vulnerability handling through Westermo PSIRT, with published security advisories
- Structured programme for alignment with the EU Cyber Resilience Act
- Zero-Touch Deployment and Lifecycle Management with Activator
- Site-specific configurations generated centrally and installed automatically, reducing the risk of misconfiguration
- Firmware-over-the-air and fleet-wide configuration updates without site visits
- Monitor portal for availability, real-time diagnostics and reporting
- Cloud service or privately installed server
- Connectivity and Routing
- Dual SIM for redundant connection to the control centre
- Four Ethernet ports for local equipment on site
- BGP, OSPF, VRRP, VRF, VLAN and QoS
Typical Applications
- Energy and Utilities
- Secondary substation and smart grid connectivity
- Migration of modem-based SCADA links to IP
- Industry and Infrastructure
- Telemetry and secure remote access for remote sites
- CCTV connectivity (LTE Cat 4 variant)
- Transport
- Intelligent traffic systems and digital signage
Technical Specifications
| Specification |
Value |
| Cellular |
LTE Cat 4 or LTE Cat-M1/NB-IoT, depending on variant; 2 × SMA |
| SIM |
2 × Mini-SIM (2FF) |
| Ethernet |
4 × 10/100 Mbit/s, RJ45 |
| Serial / Digital Input |
1 × RJ45 dual-use port: RS-232 or dry-contact digital input |
| SCADA Protocols |
IEC 60870-5-101/104, IEC 61850, Modbus RTU/TCP, DNP3, MQTT |
| Security |
TPM, Secure Boot, IPSec/OpenVPN, 802.1X, stateful firewall; developed under IEC 62443-4-1 |
| Power |
9.6–60 VDC isolated, 5 W |
| Operating Temperature |
-20 to +70 °C |
| Housing |
ABS, IP40, DIN rail, 39 × 160 × 100 mm |
| MTBF / Warranty |
1 700 000 hours (Telcordia) / 5 years |
Certifications & Standards
- CE (Radio Equipment Directive)
- EN/IEC 61000-6-2 and EN/IEC 61000-6-4 (EMC, industrial environments)
- EN 62368-1 (Safety, communication technology)
- IEC 62443-4-1 (Westermo secure development lifecycle)
