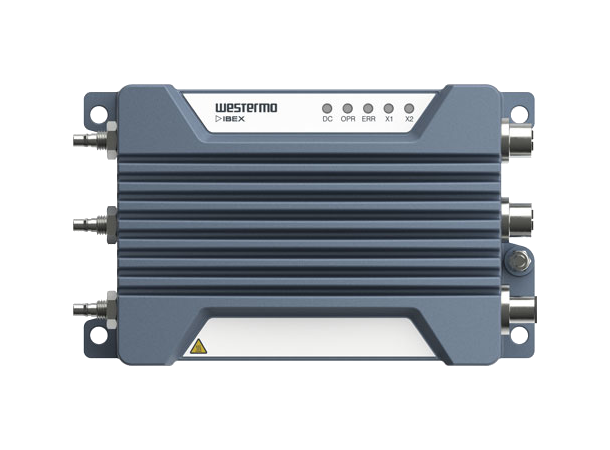

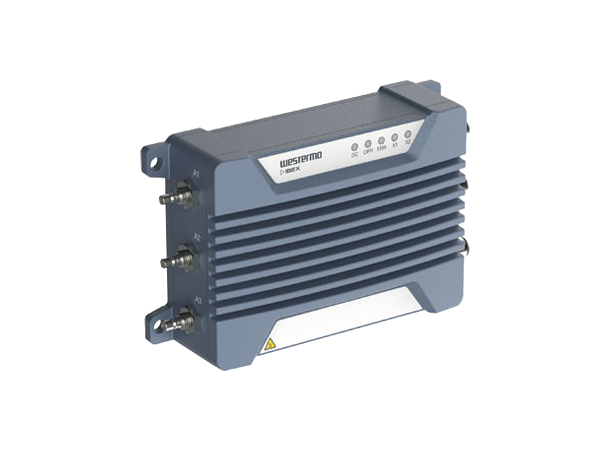

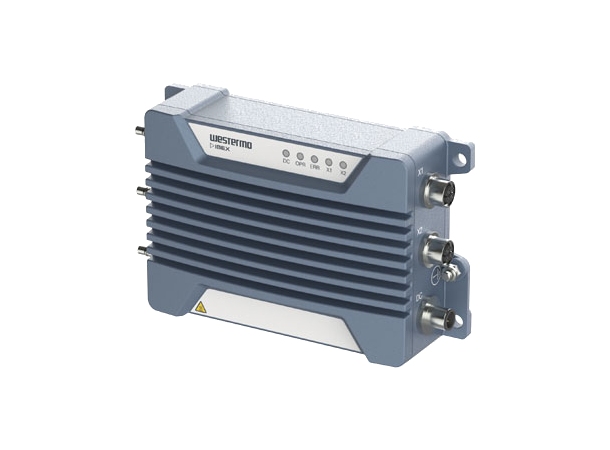

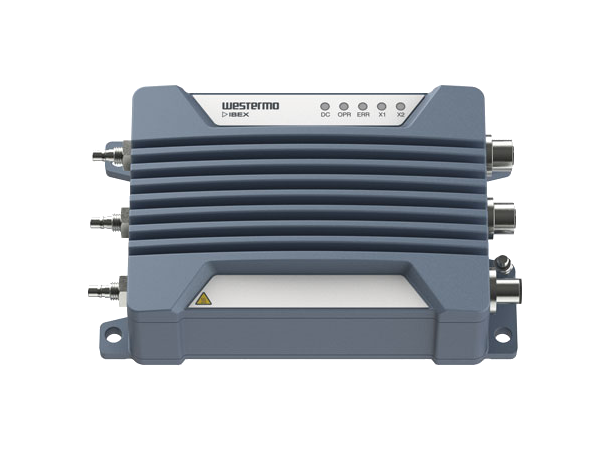

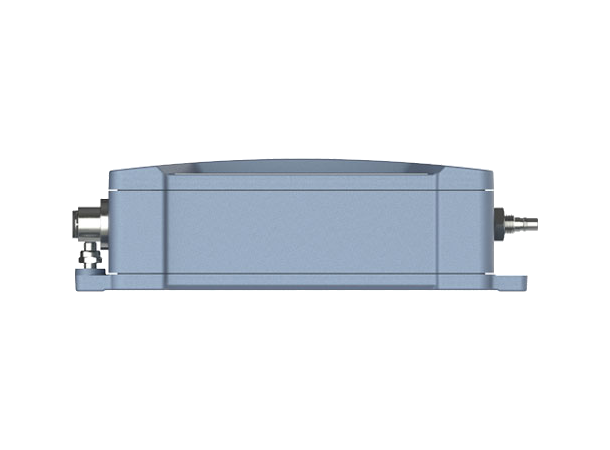

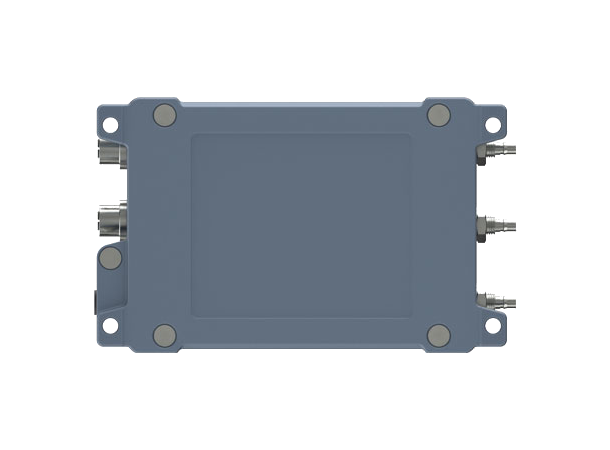

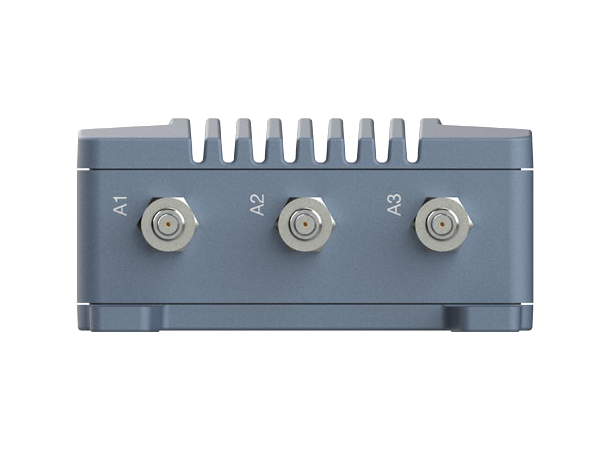

Westermo IBEX RT-320 - Industrial WiFi Access Point

802.11n Dual-Band, 3x3 MIMO, 2 x GbE, DC/PoE, IP66

The Westermo IBEX RT-320 is a high-performance WiFi access point designed for demanding industrial applications requiring extended wireless coverage and reliable high-speed connectivity. With 3x3 MIMO capability on both 2.4 GHz and 5 GHz bands, the device delivers superior range and throughput compared to standard 2x2 configurations. Supporting access point, client, and bridge modes, the RT-320 is suitable for both infrastructure deployments and mobile applications requiring robust wireless connectivity.

Engineered to meet EN 50155 requirements for railway applications, the RT-320's proven durability and comprehensive environmental testing make it ideal for harsh industrial environments including mining, maritime, and critical infrastructure deployments. The high-end RF circuitry is calibrated for maximum output power and excellent receiver sensitivity, maintaining stable connections even at extended distances. With IP66 protection, GORE-TEX membrane, and an MTBF exceeding 370,000 hours, the RT-320 delivers reliable operation and low lifecycle costs in mission-critical installations.

Key Features

• High-Power WiFi Performance
• 802.11n dual-band with 3x3 MIMO
• Up to 450 Mbps aggregate data rate
• High output power (up to 27 dBm conducted) for extended range
• Calibrated RF circuitry for optimized sensitivity and stable links
• Industrial-Grade Construction
• Full metal housing with IP66 protection
• GORE-TEX membrane prevents internal condensation
• MTBF: 380,000 hours (LV), 370,000 hours (HV)

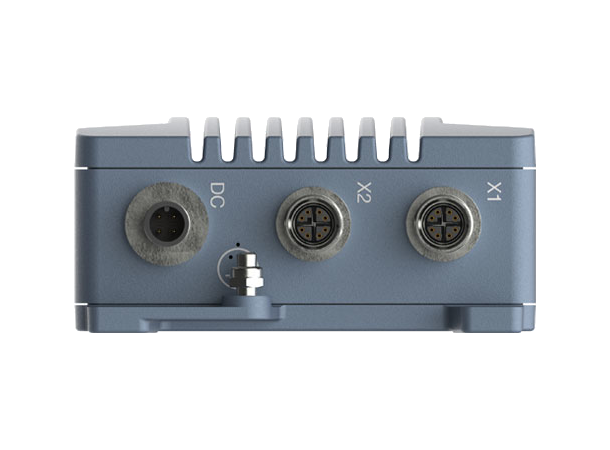

• M12 X-coded Gigabit Ethernet connectors
• Flexible Operating Modes
• Access Point, Client, Bridge, and Inter-consist Link modes
• Special ICL mode for stable train-to-train connectivity
• Fast handoff and optimized DFS for 5 GHz outdoor bands
• Enterprise Security & Networking
• WPA2, WPA3-Personal/Enterprise, 802.1X authentication
• SSL VPN (Client and Server), GRE tunneling
• VLAN support, RSTP, stateful firewall
• SNMP v2c/v3, HTTP/HTTPS, CLI management

Typical Applications

• Industrial Infrastructure
• Mining operations requiring extended wireless coverage
• Maritime vessel networks and offshore platforms
• Oil & gas remote installations
• Railway Systems
• Passenger WiFi hotspots with high capacity requirements
• Inter-consist wireless links between train cars
• High-bandwidth video surveillance transmission
• Critical Infrastructure
• Power utility substations and remote monitoring
• Large-area industrial facility coverage

Technical Specifications

Certifications & Standards

• EN 50155 (Railway rolling stock)
• EN 50125-3 (Railway signaling and telecommunications equipment)
• EN 45545-2 (Fire protection on railway vehicles)
• EN 61373 Category 1 Class A/B (Shock and vibration)
• CE marking (ETSI EN 300 328, EN 301 893)
