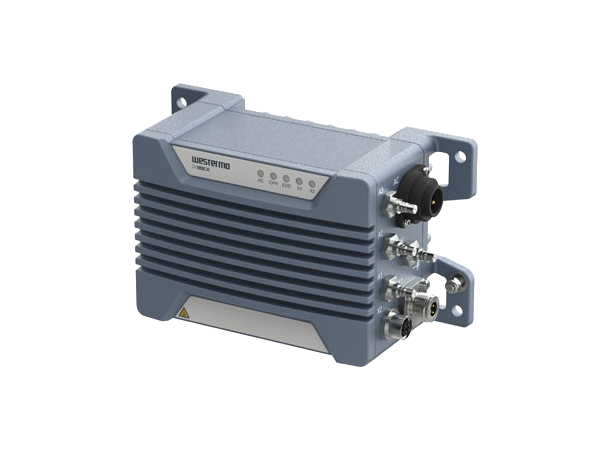

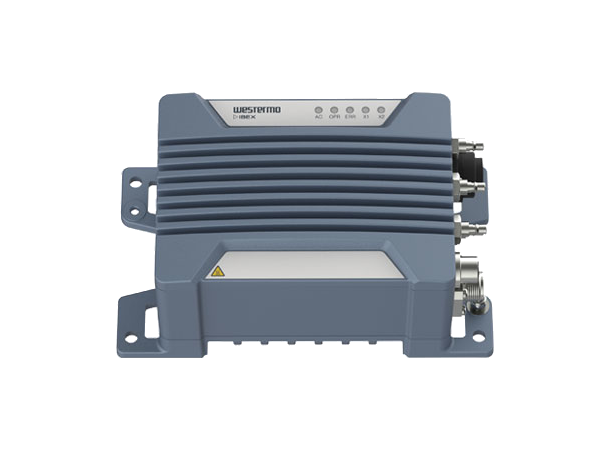

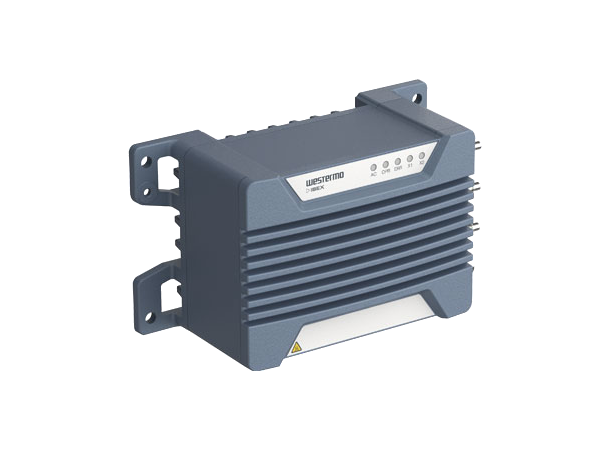

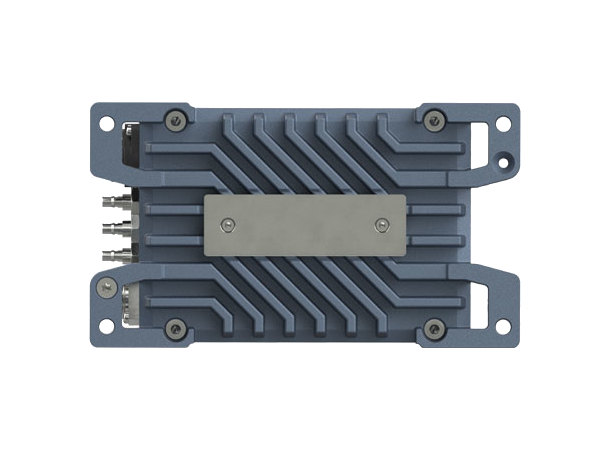

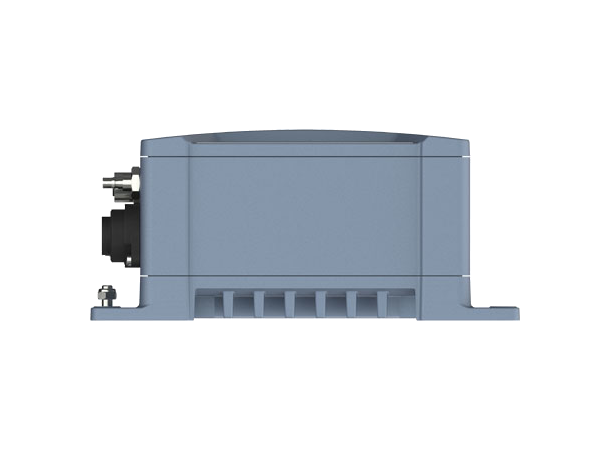

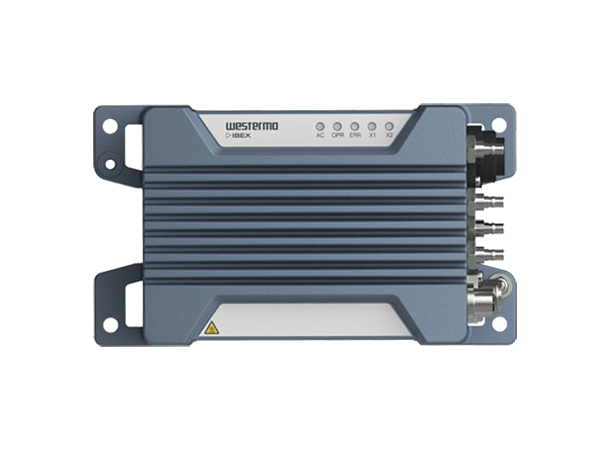

Westermo IBEX RT-370 - Industrial WiFi Infrastructure Access Point
802.11n Dual-Band, 3x3 MIMO, GbE + Fiber, AC Mains, IP66
The Westermo IBEX RT-370 is a high-performance WiFi infrastructure access point designed for trackside and stationary industrial deployments. With 3x3 MIMO on both 2.4 GHz and 5 GHz bands, the device delivers extended wireless coverage and reliable high-speed connectivity for demanding applications. The built-in 100-240 VAC mains power supply and fiber optic connectivity simplify installation in trackside and industrial infrastructure locations, while the dedicated monitoring antenna enables uninterrupted operation on DFS-regulated 5 GHz bands.
Certified to EN 50121-4 for railway trackside applications, the RT-370's proven reliability makes it equally suitable for harsh industrial environments including mining, maritime, and critical infrastructure installations. The high-power RF design with calibrated circuitry ensures extended range and stable connections to mobile and fixed wireless clients. IP66 protection, N-type RF connectors for low-loss cables, and an overall optimized design result in high MTBF and low lifecycle costs for mission-critical wireless infrastructure.
Key Features
- High-Power Infrastructure WiFi
- 802.11n dual-band with 3x3 MIMO
- Up to 450 Mbps aggregate data rate
- High output power (up to 27 dBm conducted) for extended coverage
- Dedicated monitoring antenna for advanced DFS and interference detection
- Infrastructure-Optimized Connectivity
- Gigabit Ethernet (M12 X-coded) plus 1000Base-LX fiber port
- Built-in 100-240 VAC mains power supply
- N-type RF connectors for direct low-loss cable connection
- Wireless Manager feature for multi-AP coordination
- Industrial-Grade Construction
- Full metal housing with IP66 protection
- GORE-TEX membrane prevents internal condensation
- MTBF: 240,000 hours
- High-level isolation protects against surges and spikes
- Enterprise Security & Management
- WPA2, WPA3-Personal/Enterprise, 802.1X authentication
- SSL VPN (Client and Server), GRE tunneling
- VLAN support, RSTP, stateful firewall
- SNMP v2c/v3, HTTP/HTTPS, CLI management
Typical Applications
- Industrial Infrastructure
- Mining site wireless infrastructure
- Port and maritime facility networks
- Oil & gas facility wireless coverage
- Railway Infrastructure
- Trackside wireless networks for train-to-ground communication
- Station and depot WiFi coverage
- Maintenance and operational wireless systems
- Critical Infrastructure
- Power utility substation networks
- Remote monitoring and SCADA connectivity
Technical Specifications
| Specification |
Value |
| Wireless Standard |
IEEE 802.11n/a/g/b |
| MIMO Configuration |
3x3 MIMO (2.4 GHz and 5 GHz) |
| Frequency Bands |
2.4 GHz (2.400-2.4835 GHz), 5 GHz (5.150-5.875 GHz) |
| Ethernet Interfaces |
1 x 10/100/1000 Base-T (M12 X-coded), 1 x 1000Base-LX fiber |
| RF Antenna Connectors |
3 x N-type (communication), 1 x N-type (monitoring) |
| Power Supply |
100-240 VAC, 50-60 Hz (built-in) |
| Operating Temperature |
-40 to +70°C |
| Environmental Protection |
IP66, GORE-TEX membrane |
| Dimensions (W x H x D) |
195.4 x 87 x 111.4 mm |
Certifications & Standards
- EN 50121-4 (Railway trackside EMC)
- EN 50125-3 (Railway signaling and telecommunications equipment)
- EN 45545-2 (Fire protection on railway vehicles)
- CE marking (ETSI EN 300 328, EN 301 893)
