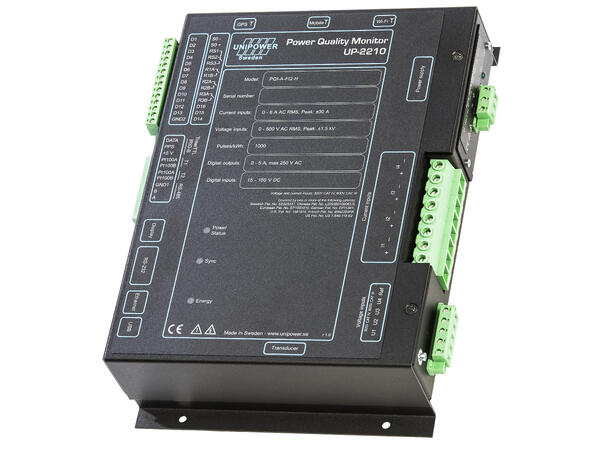

Unipower UP2210-III
PQ meter for power quality measurement.
The UP-2210 is a Class A power quality meter designed for continuous, permanent monitoring of electrical networks.
As the core measurement node in the PQ Secure system, it combines advanced power quality analysis with fault recording capabilities in a single, reliable unit.
The meter captures a comprehensive range of power quality parameters, covering both steady-state disturbances such as harmonics and flicker, and rapid voltage events including sags, swells, and fast transients.
All measurements are performed in full compliance with international and national standards, including IEC 61000-4-30 Class A, EN 50160, and IEC 61000-4-7 for harmonics and IEC 61000-4-15 for flicker.
Measurement data is automatically transferred to a central database via the PQ Secure software, where results are presented as event lists, graphical trends, and detailed reports.
The integrated report generator supports automated reporting in accordance with EN 50160 and other applicable power quality standards, reducing manual workload and ensuring consistent documentation.
The UP-2210 is well suited for utilities, industrial facilities, and grid operators that require continuous, standards-compliant power quality monitoring with full traceability and reporting capabilities.
