TWTG NEON Pressure Gauge - Industrial Wireless Pressure Sensor
IECEx/ATEX Zone 0, LoRaWAN, IP66 Rated
The TWTG NEON Pressure Gauge combines traditional analog pressure monitoring with modern wireless connectivity for comprehensive pressure monitoring in industrial environments. Designed to meet the needs of engineers who require both immediate visual feedback and remote digital monitoring capabilities, this system delivers reliable performance in the most demanding settings.

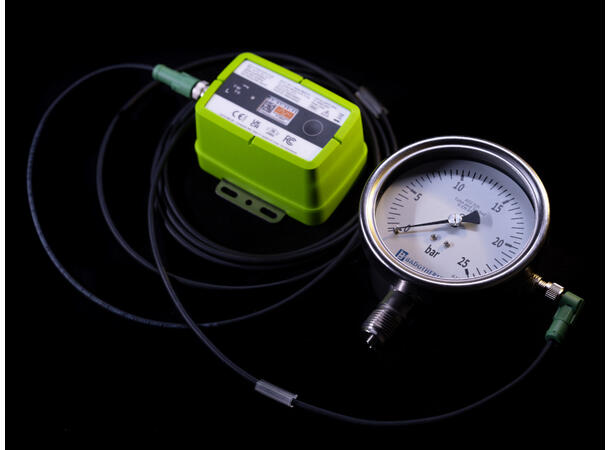

Featuring a premium Badotherm analog gauge with built-in digital readout, the NEON Pressure Gauge provides accurate pressure measurements with ±0.3% full scale accuracy. The elegant design integrates both analog and digital workflows, reducing failure points compared to competing solutions and ensuring reliable operation even in hazardous environments.
As part of the TWTG NEON product family, this pressure gauge leverages LoRaWAN technology to deliver measurements wirelessly to your existing IT infrastructure while providing immediate visual feedback for on-site inspections, maintenance procedures, or emergency situations.
KEY FEATURES
- Dual-Function Monitoring
- Badotherm analog gauge provides immediate visual pressure readings
- Built-in digital pressure sensor transmits data wirelessly
- Ideal for both digital systems and traditional analog workflows
- Advanced Measurement Capabilities
- ±0.3% full scale accuracy for reliable pressure readings
- Multiple event-based triggers (above/below thresholds, increasing/decreasing trends)
- Adjustable measurement and transmission intervals
- Industrial-Grade Design
- IECEx/ATEX Zone 0 certified for hazardous environments
- IP66 environmental protection against dust and water
- Operating temperature range from -40°C to 70°C
- Up to 10-year battery life for minimal maintenance
TYPICAL APPLICATIONS
- Process Industries
- Oil and gas facilities
- Chemical processing plants
- Petrochemical facilities
- Critical Infrastructure
- Water and wastewater treatment
- Power generation plants
- Marine and offshore installations
NEON Pressure Gauge Specifications
| Specification |
Value |
| Pressure Range (Relative) |
-1 to 600 bar (Various ranges available) |
| Accuracy |
±0.3 %fs (full scale) |
| Resolution |
±0.1 %fs (full scale) |
| Connection Type |
Standard: G ½" A or NPT ½" (Optional: 1/4" or 3/8") |
| Analog Gauge Diameter |
100 mm |
| Wetted Materials |
Pressure connection: Stainless steel AISI 316(L)
Sensing element: TP 316
Measuring cell: Ceramic
Sensor seal: FPM |
| Battery Life |
Up to 10 years (at 25°C with standard settings) |
| Wireless Protocol |
LoRaWAN (868 MHz, 915 MHz, 923 MHz compatible) |
ADDITIONAL FEATURES
- Connectivity
- Fully LoRaWAN compatible for seamless integration
- Integrates with existing data backends or DCS systems
- Compatible with TWTG's SolidRed Suite or any other IoT platform
- Ease of Deployment
- Battery powered for flexible installation
- 3-meter cable between transmitter and sensor for optimal placement
- Multiple mounting options with bracket, band clamp, or bolts
- Can be safely installed in live environments without disrupting operations
CERTIFICATIONS & STANDARDS
- ATEX/IECEx Zone 0 certified (Ex II 1G Ex ia IIC T4 Ga)
- FM certified (IS Class I, Division 1, Group ABCD T4)
- IP66 rated for dust and water protection
- CE compliant
- UKCA compliant
- WEEE Directive 2033/108/EC
- RoHS 2011/65/EU
