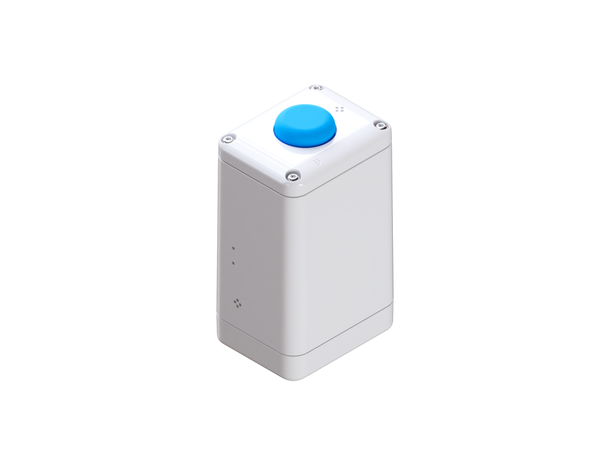

Tektelic ROBIN - Outdoor LoRaWAN Panic Button
IP67, Integrated antenna and battery
The Tektelic ROBIN is a compact, mobile, wireless outdoor panic button that transmits emergency signals from any location. This robust device instantly sends SOS messages containing location details to designated support staff or security personnel, ensuring a rapid response in panic situations. Designed for outdoor environments with an IP67 rating, the ROBIN provides reliable emergency communication for workers in hazardous or remote settings.
Featuring both LoRaWAN and Bluetooth Low Energy (BLE) capabilities, the ROBIN offers exceptional wireless connectivity while maintaining an impressive 15-year battery life. The compact design with belt clip attachment makes it ideal for personal safety applications in industries like oil & gas, mining, and for protecting vulnerable workers in isolated environments. When triggered, this emergency signaling device provides immediate notification to response teams, enhancing safety protocols for organizations of all sizes.
KEY FEATURES
- Long-lasting Power & Reliable Communications
- Exceptional 15-year battery life from a single C-cell battery
- Dual technology with LoRaWAN and Bluetooth Low Energy connectivity
- Compatible with all global ISM bands for worldwide deployment
- Ruggedized Design for Demanding Environments
- IP67-rated enclosure for complete dust protection and water immersion resistance
- Operating temperature range from -20°C to +85°C
- Compact size (67 x 43 x 36 mm) with belt clip for convenient carrying
- Emergency Alert Functionality
- Instant SOS transmission with precise location information
- Simple one-button activation for distress signaling
- Easy integration into existing LoRaWAN networks
Typical Applications
- Industrial Safety
- Lone worker protection in remote locations
- Hazardous environment monitoring in oil & gas facilities
- Emergency response in mining operations
- Personal Safety
- Protection for vulnerable individuals in outdoor environments
- Senior care and monitoring
- Children location tracking and emergency signaling
Technical Specifications
| Specification |
Value |
| Dimensions |
67 × 43 × 36 mm |
| Weight |
108 g (with battery) |
| Battery |
C-Cell 3.6V Lithium Thionyl Chloride |
| Battery Life |
Up to 15 years |
| Operating Temperature |
-20°C to +85°C |
| Ingress Protection |
IP67 |
| RF Power |
EU: 15 dBm, NA: 22 dBm |
| RF Sensitivity |
Up to -137 dBm (SF12, 125 kHz) |
| Wireless Technology |
LoRaWAN and Bluetooth Low Energy (BLE) |
| LoRaWAN Device Class |
Class A |
| Frequency Bands |
All Global ISM Bands (EU868, US915, AS923, AU915, IN865, KR920, RU864) |
Additional Features
- Sensor Capabilities
- Integrated accelerometer for motion detection
- Battery gauge for power level monitoring
- Magnetic reed switch for device activation and control
- Installation Features

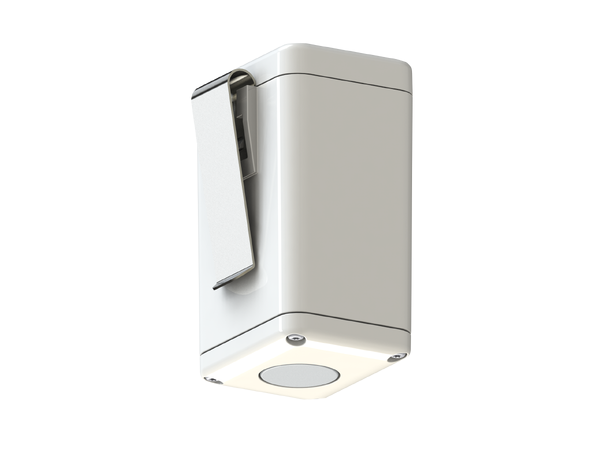

- Belt clip attachment for personal carrying
- Optional wall mounting capability
- Internal antenna for streamlined design
Certifications & Standards
- FCC 15.247 & FCC 15.209 (USA)
- RSS-247 & RSS-GEN (Canada)
- ETSI EN 300 220 & ETSI EN 301-489-1/-3 (Europe)
- IEC 60950-1 (CE Safety)
- IP67 environmental protection
