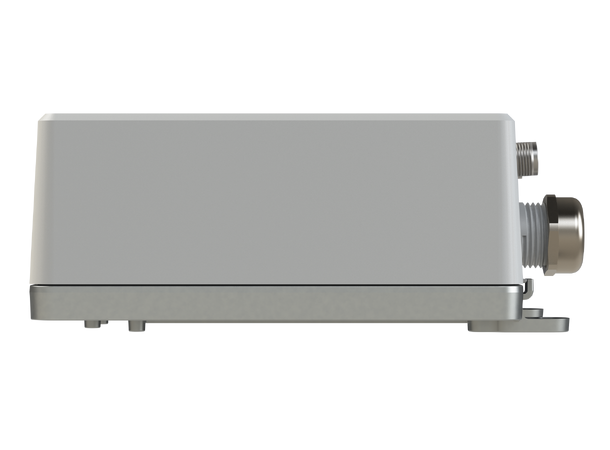

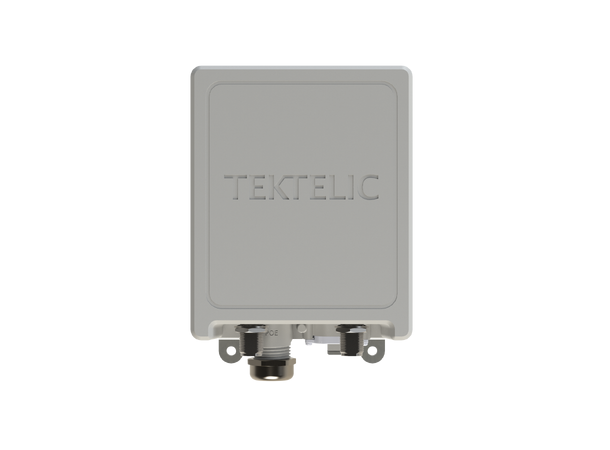

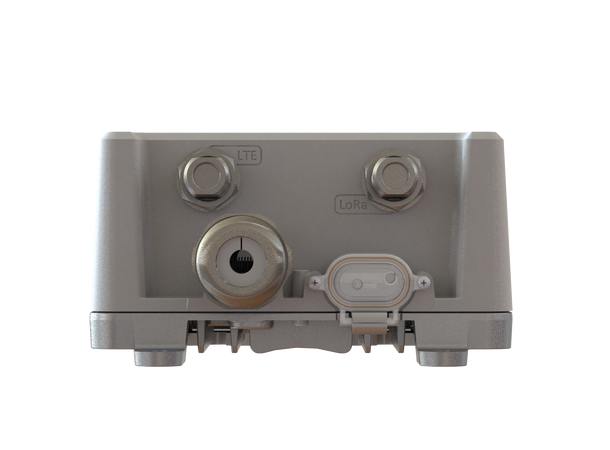

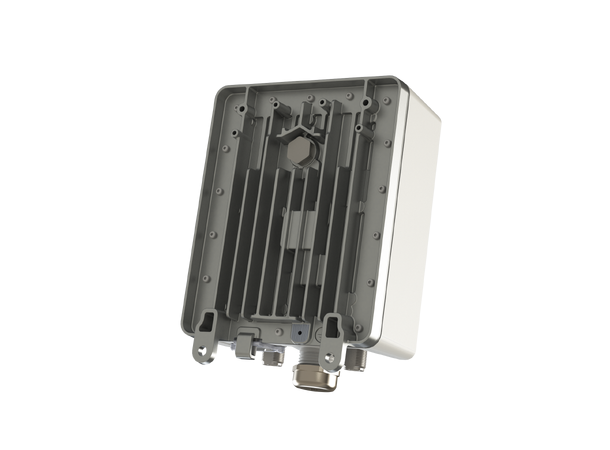

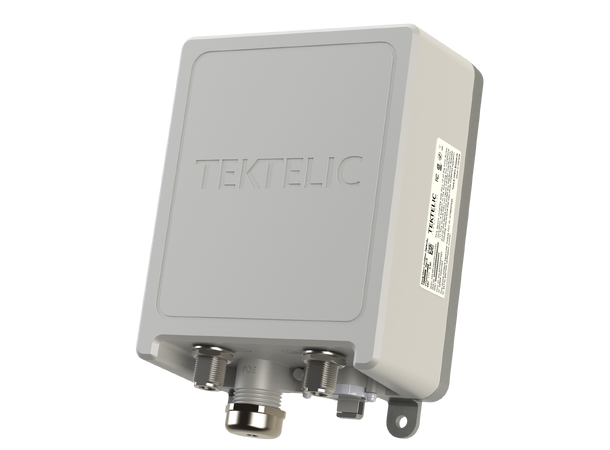

Tektelic KONA Enterprise - Outdoor LoRaWAN Gateway
IP67, 8-Channel RX, 4G, PoE
MODEL: MOEN1LEU868
The KONA Enterprise is a compact and robust industrial LoRaWAN gateway designed for reliable IoT connectivity in demanding environments. This versatile gateway combines LoRaWAN capabilities with cellular connectivity, making it ideal for enterprise-grade IoT deployments in various industrial and commercial settings. With its integrated network server and comprehensive protocol support, it enables seamless integration with existing infrastructure and industrial control systems.
Featuring a rugged IP67-rated design and carrier-grade reliability, including ESD and lightning protection integrated across all interfaces, this gateway delivers exceptional performance and reaches an MTBF of 450000 hours. The integrated Cat-6 3G/4G modem and Ethernet backhaul provide flexible connectivity options, while built-in antennas for LoRaWAN, cellular, and GPS simplify deployment and reduce installation complexity. This combination of effortless installation and robust connectivity offers operators a low and attractive TCO.
KEY FEATURES
- Advanced Radio Capabilities
- Time Duplex with 8 Rx / 1 Tx channels for efficient communicatio
- Superior receiver sensitivity of -141 dBm (SF12, 293 bits/sec)
- Robust Connectivity
- Integrated 3G/4G modem with cellular backhaul (Model dependant!)
- Built-in LoRaWAN, cellular, and GPS antennas
- Optional external antenna support for enhanced flexibility
- Industrial-Grade Design
- IP67-rated weatherproof enclosure
- Wide operating temperature range (-40°C to +60°C)
- High reliability with 450,000 hours MTBF
- Robust lightning protection for enhanced durability
- Embedded Intelligence
- Integrated WEB-server for configuration and management
- Embedded network server for on-premise architecture
- Node-RED, BACnet and Modbus TCP/IP support
Typical Applications
KONA Enterprise is suitable for a wide range of use cases. Its compact, carrier-grade design means it is suitable for large, scalable networks and installation in demanding environments. At the same time, its flexible antenna solution along with size and integrated network server and protocol capabilities make it highly suitable for smaller, stand-alone networks in building automation and industrial projects.
- Enterprise Environments
- Multi-building complexes and office campuses
- University and educational facilities
- Commercial parking structures
- Industrial Settings
- Manufacturing facilities and warehouses
- Agricultural and farming operations
- Outdoor network infrastructure
Technical Specifications
| Specification |
Value |
| Dimensions |
145.8 × 178.8 × 79.5 mm |
| Weight |
1.2 kg |
| Power Consumption |
4.5 W (Typical) |
| Operating Temperature |
-40°C to +60°C |
| Humidity |
10% to 100% Condensing |
| Transmit Power |
14 dBm to 27 dBm |
| Dynamic Range |
70 dB Analog, 100+ dB Digital |
| ISM Bands |
EU868 |
Network Interfaces
- Primary Interfaces
- RJ-45 Ethernet (10/100 BaseT)
- LTE Cat 6 4G connectivity
-
N-Type connector for optional external LoRa antenna
- Power Options
- IEEE 802.3af PoE support
- Passive PoE (37 to 57 VDC)
Certifications & Standards
- UL/CSA/EN/IEC 62368-1 Safety Certification
- FCC: 15.247, 15.109, 15.209
- ISED: RSS-247, RSS-Gen
- CE: RED 2014/53/EU
