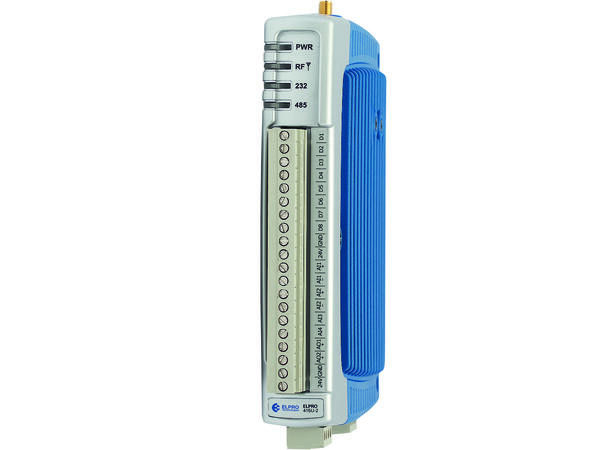

Elpro 415U-2-C1 Condor VHF Radiomodem and I/O Gateway

148-174MHz, 8xDI/O, 4xAI, 2xAO, 1xRS232, 1xRS485, 1xETH, 10W

ELPROs 415U-2 is an industrial, robust combined radiomodem and I/O Gateway made to extend communications to sensors in local, remote, and difficult-to-reach locations. Designed with the Condor series long-range, high data speed wireless transceiver which supports Ethernet based protocol over the air and gives the 415U-2 the power and flexibility to perform reliably in sprawling harsh industrial environments.

Secure. AES encryption, advanced IP filtering, multilevel authentication, user access and change event logging features provide the user with the tools to ensure the highest level of data integrity and protection against malicious attacks

Flexible. Ethernet native support provides solutions to connectivity challenges today and in the future. The ELPRO 415U-E-Cx also provides Ethernet and serial gateway support for industrial protocols including Modbus TCP/RTU and DNP3 I/O, MQTT +SparkplugB.

Reliable. The Condor series 415U-E-Cx ProMesh™ operates reliably with the challenges of obstructed paths by using automatic path selection and frequency agility to allow the communications network to adapt to changes easily with redundancy

Key Features

• Wireless point-to-point or multipoint I/O and gateway functionality
• Full Ethernet protocol over the air providing standards-based flexibility to support future and legacy devices
• Redundancy modes for base, repeater, and remote
• ProMesh automatic path selection and network formation
• Frequency agility roaming provides reliability and flexibility within the network architecture
• Supports multiple data rates simultaneously for high performance over short and long communication links
• Over-the-air context-based data compression and forward error correction provides maximum reliability and transmission efficiency
• Exceeding 140 kbps data throughput
• 10mW to 10W RF power configurable, license or license-free
• Software configurable wireless channel bandwidth supporting 6.25, 12.5, 25.0 kHz
• Over-the-air network diagnostics and configuration
• Secure data protection with WPA and AES256 encryption
• Integrated digital, pulse, and analog I/O
• Gather-scatter/block mapping and integrity checking transmissions for efficient event triggered peer-to peer I/O
• IO Plus Logic engine for controlling I/O points
• Internal Web dashboard for immediate view of local I/O
• User configurable dashboard to display I/O and Diagnostics
• Modbus TCP and RTU I/O gateway
• DNP3 I/O gateway, including internal status registers
• IoT connectivity with MQTT Sparkplug B Gateway
• Standard Ethernet bridge default to allow modem function for external Ethernet host devices (full L2/ L3 network support
• Expandable I/O for local alarms and inputs/outputs

Typical Applications

• Water and wastewater: flows, levels, pumps
• Renewable Energy: solar farms, wind turbines, hydro
• Irrigation: slew gate controls, levels
• Oil and gas networks: gas well production, lift pump
• Environmental: storm warning, smoke stacks, filters
• Mining infrastructure: conveyor, re-claimer, pumps
