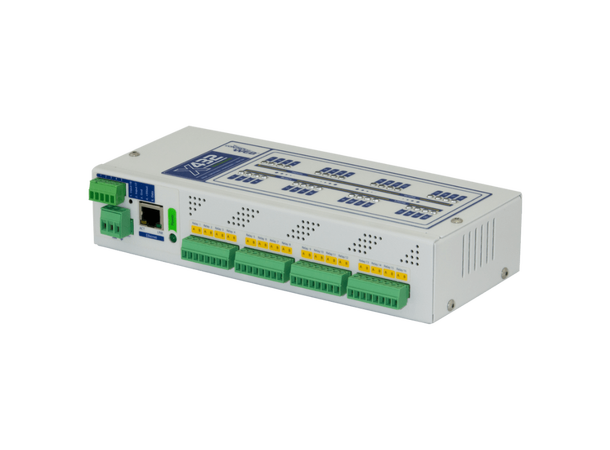

Control By Web X-432 - Advanced I/O Controller
16 x Relays, 18 x DI, 4 x AI, 1-wire
The X-432™ is a robust, full-featured, web-enabled Ethernet I/O module combining 3 major advantages:
- Advanced programmability
- 38 on-board I/O
- Easy-to-use digital WEB interface.
Not only is it completely self-sufficient, but it can also seamlessly control and/or monitor I/O on other ControlByWeb devices.
The X-432™ has a built-in web server so its relays and inputs can be
controlled and monitored - locally or remote - using a standard web
browser (or by using our CBW Mobile smartphone app). Email alerts
can be configured based on relay and/or input states, and temperature/
humidity thresholds.
16 relays, 16 optically-isolated digital inputs, 2 digital inputs, 4 analog
inputs, and support for up to 16 temperature/humidity sensors
make this a very capable device ideal for a great many applications
in industries including Water/Wastewater, Energy and Building
Automation.
Key Features
- 16 electro-mechanical relays (2 Amp NO contacts)
- 16 optically-isolated digital inputs and 2 digital inputs
- 4 analog inputs (0-5VDC)
- One-wire bus for up to 16 temperature and/or humidity
sensors
- Highly configurable - almost any combination of input/
relay control possible
- Real-Time Clock with NTP server synchronization
- Automatic daylight savings and leap year adjustment
- Calendar scheduling with 50 Scheduled and
50 Conditional Tasks
- Email alerts based on user-defined condition
- Built-in web server - No software required
- Customizable web-based control page
- BASIC script support for advanced exibility
- Configurable logging and graphing
- Static or DHCP IP address configuration
- XML, JSON, Modbus TCP/IP, and SNMP interface options
- Field updatable
- Removable terminal connectors for easy installation
- Rugged DIN-Rail/wall-mountable enclosure
