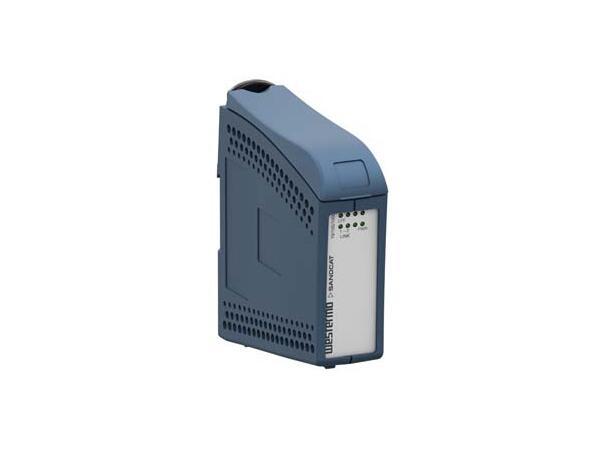

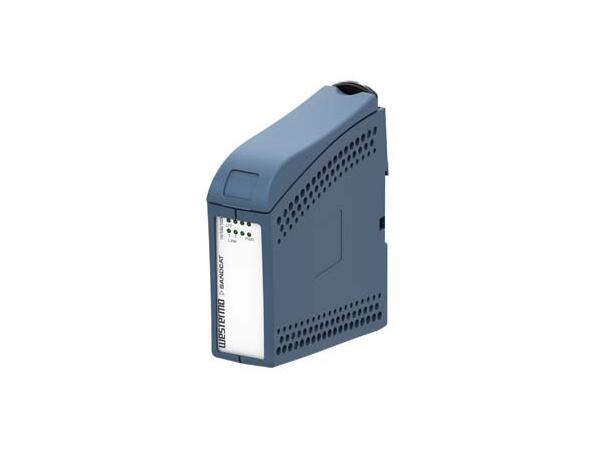

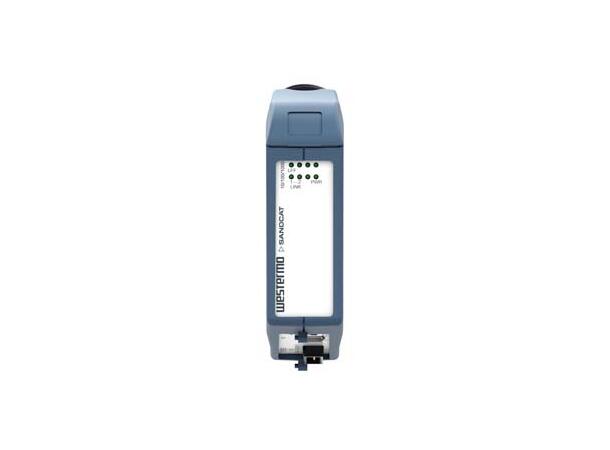

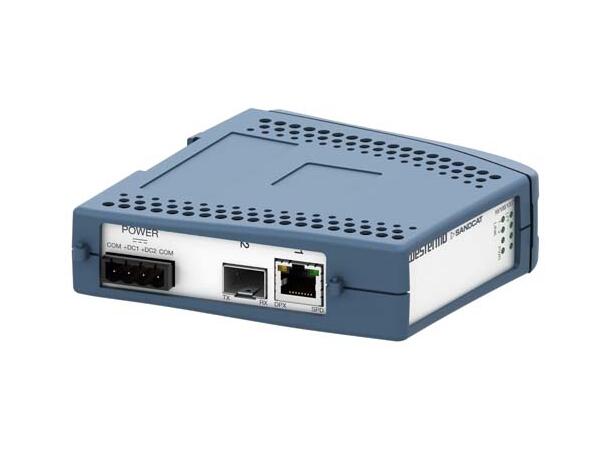

Westermo SandCat-MC-3502-F1G-T1G-LV
Unmanaged Gigabit Media converter.
The SandCat-3000 series consists of industrial unmanaged gigabit switches and a media converter, developed to meet the needs of both current and future industrial data network applications.
These devices are designed for robust performance in demanding environments, such as industrial, maritime and rail trackside applications.
They ensure reliable connectivity with support for 802.1Q long packets and standard industrial Ethernet protocols.
The link fault forward function helps to transfer indication of media failure onto connected ports to ensure that the SandCat-MC-3502-F1G-T1G-LV can be used in resilient network structures.
Robust and Reliable:

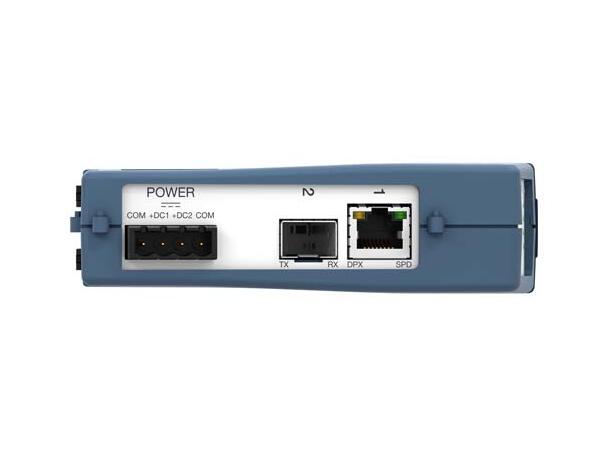

- Dual power input 9.6-57.6 VDC.
- Unique "tri-galvanic" isolation between ports, power supply and chassis.
- IP21 rating for use where condensed water may occur.
- Operating temperature: -40 to +70°C with no moving parts.
- Industrial grade components for long service life.
Features:
- Support for 802.1Q long packets and standard industrial Ethernet protocols.
- Link fault forward for reliable network structures.
- Port mirroring for simplified network diagnostics.
- DIP switch for locking data rate and flow control.
The series is tested to the highest EMC, isolation, vibration and shock standards.
