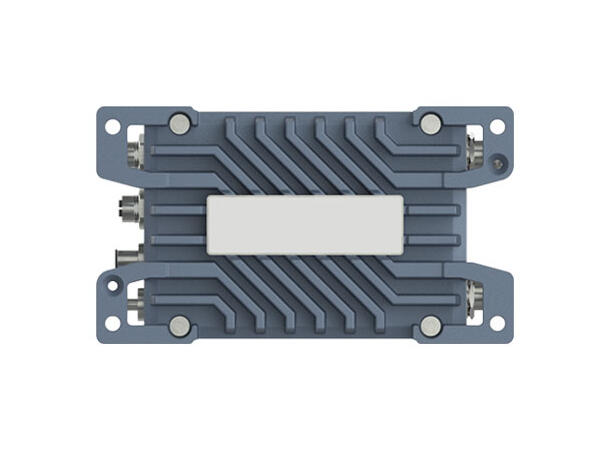

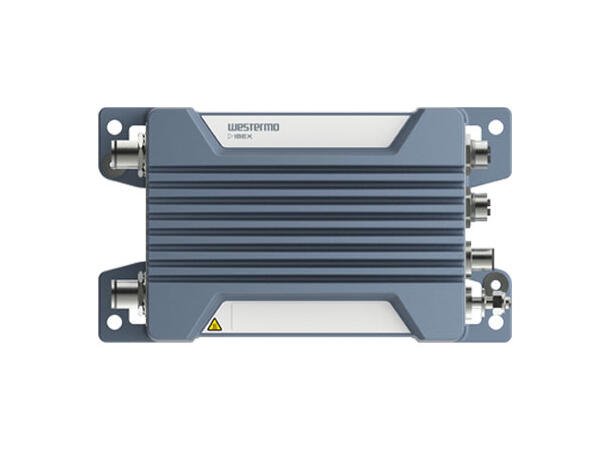

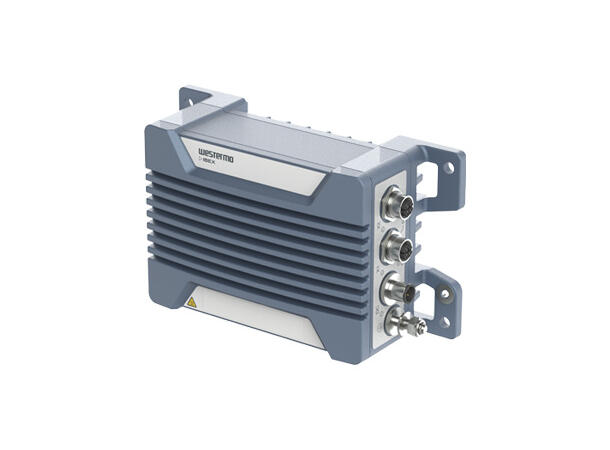

Westermo Ibex-1310 - Industrial Outdoor WiFi 6 Access Point
802.11ax Dual-Band, 2x2 MIMO, IP66, AP/CPE, DC + PoE
Version: Ibex-1310-T2G2.5 EU
The Ibex-1310 delivers industrial-grade WiFi 6 connectivity for outdoor installations and mobile applications where reliability cannot be compromised. This dual-band concurrent access point combines 802.11ax efficiency with environmental protection designed for substations, trackside installations, and industrial vehicle networks.
Built for deployment in demanding electromagnetic environments and extreme temperatures, the Ibex-1310 provides secure wireless connectivity where standard commercial access points fail. Full galvanic isolation protects network infrastructure from voltage spikes and surge events, while IP66-rated enclosure and GORE-TEX membrane enable year-round outdoor operation across Nordic climate conditions.
Key Features
- WiFi 6 (802.11ax) Performance
- Concurrent dual-band operation: 2.4 GHz and 5 GHz
- 2x2 MU-MIMO with 4 spatial streams total
- Up to 573 Mbps (2.4 GHz) and 1201 Mbps (5 GHz)
- Support for up to 512 client connections per radio
- Industrial Environmental Protection
- IP66-rated enclosure prevents water and dust ingress
- GORE-TEX membrane eliminates internal condensation
- -40 to +70°C operating temperature range
- Full metal housing with effective heat dissipation
- Network Infrastructure Protection
- Galvanic isolation on all interfaces protects against voltage spikes
- 9.6 to 60 VDC wide input voltage tolerance
- IEEE 802.3at PoE PD support (Class 4)
- M12 X-coded connectors for vibration resistance
- Enterprise Wireless Security
- WPA3-Enterprise with Suite-B cryptography
- 802.1X authentication with RADIUS integration
- Per-SSID dynamic VLAN assignment
- Client isolation and MAC-based access control
- Advanced Client Management
- Air Time Fairness (ATF) prevents slow clients from degrading network
- Band steering between 2.4 GHz and 5 GHz for optimal performance
- 802.11k/v support for seamless roaming
- Multi-AP client steering for distributed deployments
Typical Applications
- Power Utilities
- Substation automation and monitoring networks
- Field worker connectivity in switchyards
- Temporary access during maintenance operations
- Transportation Infrastructure
- Railway trackside communication systems
- Mobile networks in buses and rail vehicles
- Platform and station WiFi coverage
- Industrial Facilities
- Outdoor wireless coverage in harsh environments
- Mobile equipment connectivity
- Remote site monitoring and control
Technical Specifications
| Specification |
Value |
| Wireless Standard |
IEEE 802.11ax (WiFi 6), backward compatible with 802.11a/b/g/n/ac |
| Radio Configuration |
Dual-band concurrent, 2x2 MU-MIMO (4 spatial streams total) |
| Frequency Bands |
2.4 to 2.4835 GHz, 5.15 to 5.875 GHz |
| Data Rates |
Up to 573 Mbps (2.4 GHz), up to 1201 Mbps (5 GHz) |
| Ethernet Ports |

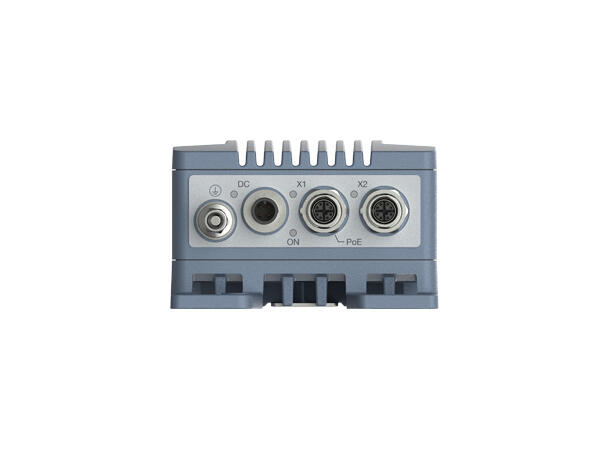

2 × 10/100/1000/2500 Base-T, M12 X-coded connectors |
| RF Connectors |

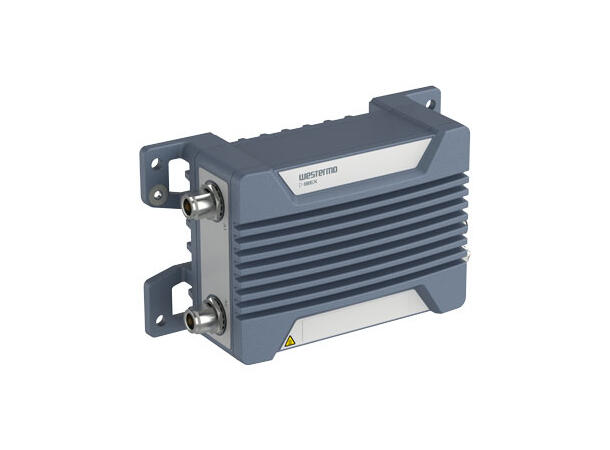

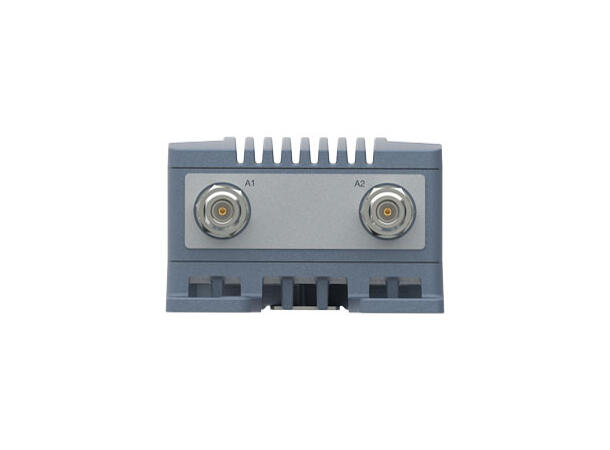

2 × N-type with integrated 2.4/5 GHz combiner |
| Power Supply |
9.6 to 60 VDC or IEEE 802.3at PoE (Class 4), galvanically isolated |
| Operating Temperature |
-40 to +70°C |
| Enclosure Rating |
IP66, full metal housing with GORE-TEX membrane |
| MTBF |
424,000 hours (DC powered), 538,000 hours (PoE only) |
Additional Features
- Multiple operating modes: Access Point, Client, and Bridge
- Up to 8 SSID assignments per radio
- VPN support: IPsec, OpenVPN, WireGuard, GRE
- Advanced routing: Static, Policy-based, and Multicast routing
- Stateful firewall with L2/L3 filtering
- SNMPv2c/v3 monitoring with comprehensive MIB support
- Dual firmware with primary/backup redundancy
Certifications & Standards
- EN 50121-4 (Railway trackside EMC)
- EN 61000-6-2/6-4 (Industrial EMC immunity and emission)
- EN 50125-3 (Railway mechanical shock and vibration)
- CE marking
