TWTG NEON Pressure Sensor
IoT Pressure Monitor for Hazardous Locations
LoRaWAN Class A, IECEx / ATEX Zone 1, IP66

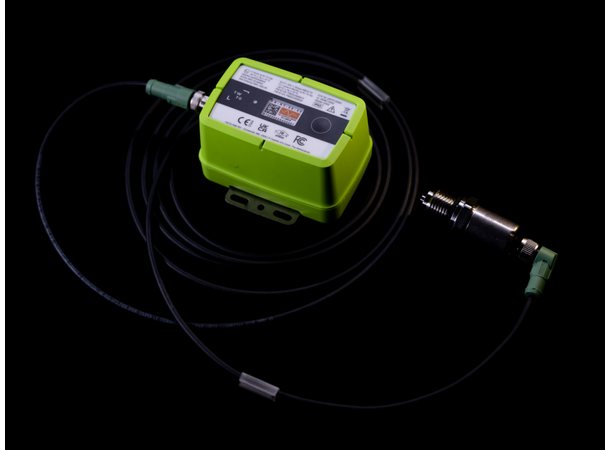

The TWTG NEON Pressure Sensor (DS-RT-PS-02-XX) is an industrial IoT monitoring solution that digitizes analog pressure measurements for LoRaWAN transmission. This system combines the NEON Ratiometric Transmitter with industrial pressure transmitters to enable remote pressure monitoring in hazardous areas with ATEX/IECEx Zone 0 certification.
Designed for critical infrastructure applications, the NEON system features a robust IP66-rated transmitter that connects to pressure transmitters via robust M12 cable. The ratiometric measurement principle ensures accurate pressure readings across the entire signal range, while intelligent power management delivers over 10 years of maintenance-free operation in typical deployments.
Supporting pressure ranges from -1 to 1000 bar with various thread connection options (G½", NPT, metric), the NEON Pressure Sensor adapts to diverse industrial requirements. Its proven reliability across extreme temperatures and built-in diagnostic features make it ideal for digital transformation in oil & gas, water utilities, and industrial process control.
KEY FEATURES
- Pressure Monitoring Capabilities
- Pressure ranges: -1 to 1000 bar (relative, multiple ranges available)
- Accuracy: ±0.3% full scale with ±0.1% resolution
- Configurable measurement intervals: 1 to 240 minutes
- Event-based triggers: above/below thresholds, increasing/decreasing trends
- Hazardous Area Certified
- ATEX: Ex II 1G Ex ia IIC T4 Ga
- IECEx: Ex ia IIC T4 Ga
- cFMus: IS Class I, Division 1, Groups ABCD T4
- Safe for Zone 0 deployment in explosive atmospheres
- Industrial Construction
- Transmitter: IP66 rated enclosure, -40°C to +70°C operation
- Pressure sensor: -25°C to +85°C, stainless steel 316L wetted parts
- Ceramic measuring cell with FPM seals
- 2.5× overload protection
- LoRaWAN Connectivity
- LoRaWAN 1.0.4 Class A (868/915/923 MHz)
- 10+ year battery life (Default setting, 1 message/hour, measurements every 5 min at 25°C)
- Replaceable D-cell battery (17 Ah)
- NFC for device identification and provisioning
- Remote configuration via downlinks
Typical Applications
- Oil & Gas Industry
- Wellhead pressure monitoring in hazardous zones
- Pipeline integrity surveillance
- Storage tank and vessel pressure monitoring
- Water Infrastructure
- Distribution network pressure optimization
- Pump performance monitoring
- Leak detection through pressure pattern analysis
- Industrial Facilities
- Compressed air and gas system monitoring
- HVAC system performance tracking
- Critical process pressure surveillance
NEON Pressure Sensor System Specifications
| Specification |
Value |
| Pressure Measurement |
|
| Pressure Ranges |
-1 to 1000 bar (multiple ranges available) |
| Accuracy |
±0.3% FS (characteristic line) |
| Resolution |
±0.1% FS |
| Thermal Characteristic |
±0.2% FS per 10°C maximum |
| Long-term Stability |
±0.25% FS per EN 60700-1 |
| Environmental |
|
| Operating Temperature |
Transmitter: -40°C to +70°C
Sensor: -25°C to +85°C |
| Protection Rating |
IP66 |
| Altitude |
Up to 3000 m |
| Connectivity |
|
| Wireless Protocol |
LoRaWAN 1.0.4, Class A |
| Frequency Bands |
868 MHz, 915 MHz, 923 MHz |
| RF Output Power |
+14 dBm (25 mW) |
| Power & Installation |
|
| Battery Type |
1 × D-cell (3.6V, 17 Ah Lithium) |
| Battery Life |
10+ years (default configuration at 25°C) |
| Process Connection |
G½" standard (NPT, metric options available) |
| Cable Length |
3 meters |
| Transmitter Dimensions |
106 × 86 × 57 mm |
Measurement & Data Features
- Intelligent Event Detection
- Threshold monitoring: Above/below configurable limits
- Trend detection: Increasing/decreasing pressure patterns
- Configurable measurement window for delta calculations
- Immediate alerts on condition changes
- Data Transmission Options
- Periodic messages: Up to 1008 measurements per transmission
- Statistical data: Min/avg/max values per period
- Device health: Battery voltage, temperature, signal quality
- Confirmed uplinks for critical applications
- Configuration & Diagnostics
- Remote configuration via LoRaWAN downlinks
- Built-in self-test procedure
- LED status indicators
- NFC for local device identification
Certifications & Standards
- ATEX/IECEx: Ex II 1G Ex ia IIC T4 Ga (Zone 0 certified)
- RoHS compliant
- Optional: NSF/ANSI 61/372 and WRAS approval for drinking water applications
