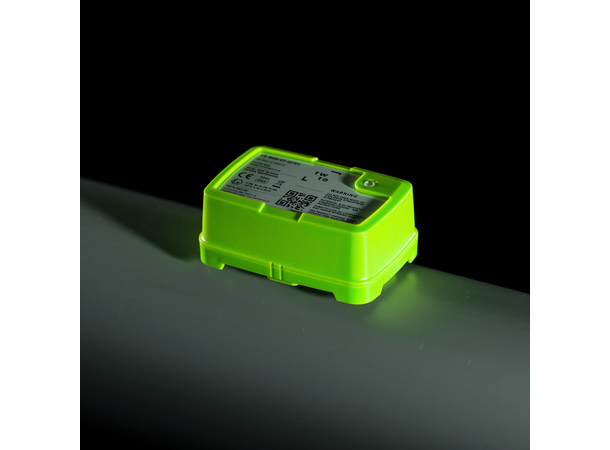

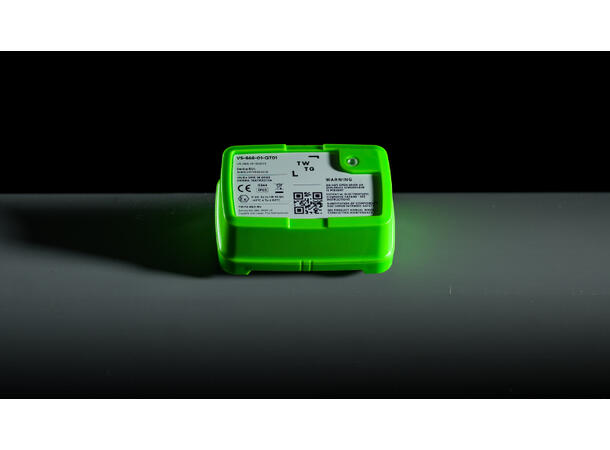

TWTG NEON Temperature Sensor - Industrial IoT Surface Temperature Solution
LoRaWAN, ATEX Zone 1, IP65, -40°C to 80°C Range
The TWTG NEON Temperature Sensor is a rugged industrial IoT device designed to monitor surface temperature on various industrial assets. Purpose-built for hazardous environments, this retrofittable sensor provides instant insight into temperature changes, allowing for enhanced operational monitoring and preventive maintenance. The device operates on the reliable NEON platform, featuring battery power, intrinsically safe certification, and LoRaWAN wireless communication.
Featuring a durable NEON green enclosure with multiple mounting options, this sensor offers exceptional versatility in deployment. The temperature probe provides accurate surface temperature readings with 0.5°C accuracy, while the built-in magnetic mounting option allows for quick installation on ferromagnetic surfaces. With an operating temperature range of -40°C to 80°C and a battery life of 3-5 years, the sensor delivers consistent performance in even the most demanding industrial environments.
KEY FEATURES
- Hazardous Area Certification
- ATEX Zone 1 / IECEx certification (Ex II 2G Ex ia IIB T4 Gb)
- FM Approved for US and Canada (Class I Division 1, Groups C, D; T4)
- Engineered for safe operation in explosive atmospheres
- Industrial-Grade Design
- IP65 rated for dust and water resistance
- Wide operating temperature range (-40°C to 80°C)
- Rugged molded plastic enclosure in distinctive NEON green
- Versatile Installation Options
- Internal magnets for quick mounting on ferromagnetic surfaces
- Adhesive option for non-magnetic surfaces
- Band clamp compatibility for mounting on pipes and circular objects
TYPICAL APPLICATIONS
The NEON product line is especially developed for reliable condition monitoring scenarios in industrial settings.
- Oil & Gas Industry
- Storage tank temperature monitoring
- Pipeline temperature measurement
- Process equipment monitoring
- Industrial Operations
- Manufacturing equipment temperature tracking
- Critical asset monitoring
- Preventive maintenance applications
- Steam Trap monitoring
NEON Temperature Sensor Specifications
| Specification |
Value |
| Dimensions |
95 × 64 × 39 mm (L × W × H) |
| Weight |
150g |
| Measurement Accuracy |
0.5°C (depending on application and installation) |
| Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature |
10°C to 30°C |
| Battery Life |
3-5 years (at 25°C, depending on configuration, network quality, and geographical location) |
| Battery Type |
1× Type A, 3.6V, 3600 mAh (replaceable) |
| Wireless Protocol |
LoRaWAN (868 MHz, 915 MHz, or 923 MHz depending on region) |
| Maximum RF Output |
13.8 dBm |
| Environmental Rating |
IP65 |
ADDITIONAL FEATURES
- Smart Monitoring Capabilities
- Configurable measurement intervals
- Alert triggering based on temperature thresholds
- Min/Max/Average temperature reporting
- Communication Features
- Fully LoRaWAN compatible for long-range, low-power communication
- Works with both private and public LoRaWAN networks
- Configurable via NEON configurator tool
- User Interface
- RGB LED status indicator
- Magnetic key operation for activation and status checking
CERTIFICATIONS & STANDARDS
- ATEX (II 2G Ex ia IIB T4 Gb)
- IECEx (Ex ia IIB T4 Gb)
- FM Approved (Class I Division 1, Groups C, D; T4)
- CE (EU: Covers RoHS, ATEX, RED)
- FCC (US & Canada)
- IMDA (Singapore)
- IP65 Environmental Protection
