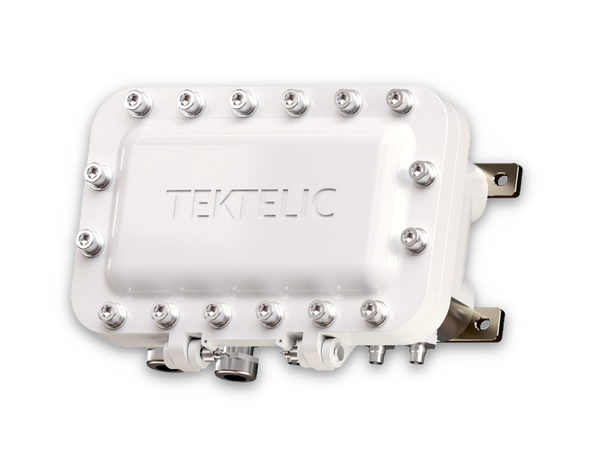

TEKTELIC KONA Macro Ex
ATEX Zone 1 LoRaWAN® Gateway
16-Channel EU868, Ethernet & LTE Backhaul, IP66
The TEKTELIC KONA Macro Ex is a carrier-grade LoRaWAN® gateway certified for deployment directly inside ATEX Zone 1 hazardous areas where combustible gases, vapours, or dusts may be present. The gateway eliminates the need for third-party Exd enclosures with their associated cost, additional certifications, and pre-assembly lead times — while also avoiding the coverage compromises of placing standard gateways outside the hazardous zone.
The gateway features TEKTELIC's custom-designed ATEX enclosure optimised for airflow and heat dissipation, combined with integrated highly selective cavity bandpass filters and an enhanced low-noise radio architecture. This carrier-grade design delivers 850,000 hours MTBF and supports 16 receive channels with 2 transmit channels in Time Duplex mode, providing the capacity and reliability required for large-scale industrial monitoring deployments in refineries, chemical plants, pipelines, and mining operations.
Key Features
- ATEX Zone 1 Certified Design
- Custom enclosure rated for deployment in explosive gas and dust atmospheres
- IP66 ingress protection with -40°C to +60°C operating range
- Eliminates coverage limitations of placing gateways outside hazardous zones
- Carrier-Grade Radio Performance
- 16 Rx / 2 Tx channels (Time Duplex, EU868)
- Integrated highly selective and adaptive cavity bandpass filters
- Enhanced low-noise receiver design (-142 dBm sensitivity, 3.5 dB noise figure)
- 27 dBm transmit power with 75 dB Tx-to-Rx isolation
- Flexible Backhaul & Management
- Ethernet (PoE 802.3at) and 3G/4G cellular backhaul
- Full remote management with software upgrade, radio configuration, and system health monitoring
- Integrated GPS with flight recorder for diagnostics
Typical Applications
- Oil & Gas
- Refinery and processing plant monitoring
- Pipeline leak detection and pressure monitoring
- Chemical & Process Industry
- Gas detection and environmental monitoring in Zone 1 areas
- Equipment condition monitoring and predictive maintenance
- Mining & Grain Storage
- Air quality and dust concentration monitoring
- Worker safety and asset tracking in explosive atmospheres
Technical Specifications
| Specification |
Value |
| LoRaWAN® Channels |
16 Rx / 2 Tx (Time Duplex, EU868) |
| Tx Power |
27 dBm |
| Rx Sensitivity |
-142 dBm (SF12, 293 bits/sec) |
| Backhaul |
Ethernet (802.3at PoE) & 3G/4G Cellular |
| Antenna Connectors |
N-Type (Main & Diversity) with 10 kA surge protection |
| Power Supply |
48 VDC (M25 terminal block), 14 W typical |
| Operating Temperature |
-40°C to +60°C |
| Ingress Protection |
IP66 |
| MTBF |
850,000 hours |
| Dimensions / Weight |
352 × 247 × 158 mm / 15 kg |
Certifications & Standards
- ATEX/IECEx Gas: Ex db [ia Ga] IIB+H2 T6 Gb
- ATEX/IECEx Dust: Ex tb [ia Da] IIIC T85°C Db
- Ingress Protection: IP66
