TEKTELIC CLOVER - Smart Agriculture LoRaWAN Sensor
Class A, IP67, Multi-parameter Soil Monitoring

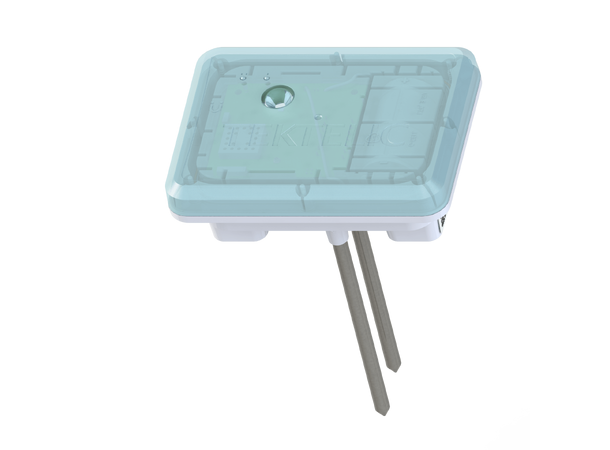

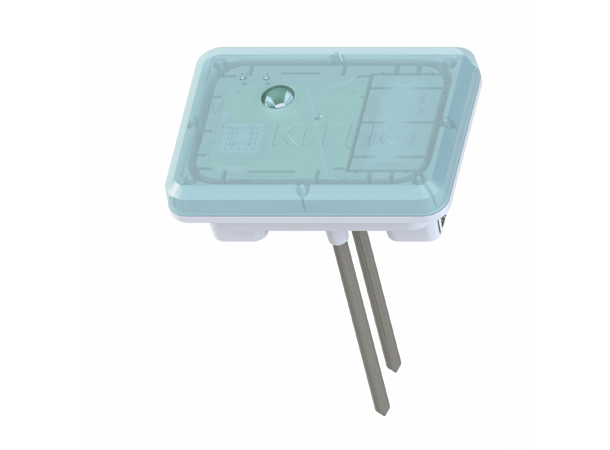

The TEKTELIC CLOVER Agriculture Sensor is an advanced IoT solution designed to revolutionize precision agriculture through comprehensive environmental monitoring. This versatile sensor streamlines the collection of critical soil and environmental metrics for various applications including commercial farming, residential gardens, and golf courses, enabling data-driven decision-making for optimal crop management and resource utilization.
Featuring a rugged IP67-rated design and powered by a long-lasting C Cell LTC battery, the CLOVER sensor delivers up to 10 years of reliable operation in challenging outdoor environments. The device offers flexible deployment options with both soil surface mounting and elevated mounting configurations, along with internal or optional external antenna choices to ensure optimal coverage across diverse agricultural settings.
Built on LoRaWAN® technology, this smart sensor provides real-time monitoring of multiple parameters including soil moisture, temperature, ambient conditions, and light levels, making it an ideal solution for precision agriculture and smart irrigation applications.
KEY FEATURES
- Comprehensive Monitoring Capabilities
- Simultaneous tracking of soil moisture and temperature
- Ambient humidity and temperature measurement
- Integrated light detection and measurement
- Robust Design for Agricultural Applications
- IP67-rated protection against dust and water ingress
- Wide operational temperature range from -40°C to +65°C
- Durable construction for long-term outdoor deployment
- Advanced Communication Features
- LoRaWAN® Class A (B) device with support for all global ISM bands
- High RF sensitivity of -137dBm (SF12, 125kHz)
- RF power up to 23 dBm (200mW)
Typical Applications
- Agricultural Monitoring
- Precision farming and crop management
- Smart irrigation systems
- Orchards and vineyards monitoring
- Commercial and Recreational
- Golf course turf management
- Commercial greenhouse operations
- Public parks and gardens maintenance
Technical Specifications
| Specification |
Value |
| Dimensions |
120 × 93 × 58 mm (Sensor)
0.3m - 1m (Probe) |
| Operating Temperature |
-40°C to +65°C |
| Power Source |
C Cell LTC Battery (up to 10 years life) |
| RF Specifications |
Power: Up to 23 dBm (200mW)
Sensitivity: -137dBm (SF12, 125kHz) |
Certifications & Standards
- Safety: UL 60950-1 (US/C), IEC 60950-1 (CE)
- Environmental: ETSI EN 300 019-2-1, 300 019-2-2, 300 019-2-3, 300 019-2-4
- Regulatory: FCC 15.247 RSS-247, FCC 15.209 RSS-Gen
- IP67 Environmental Protection Rating
