TEKTELIC KONA Mega EU - High Capacity LoRaWAN Gateway
16+16 Rx/4 Tx Channels, Dual Antenna, IP67, 3G/4G & Ethernet Backhaul

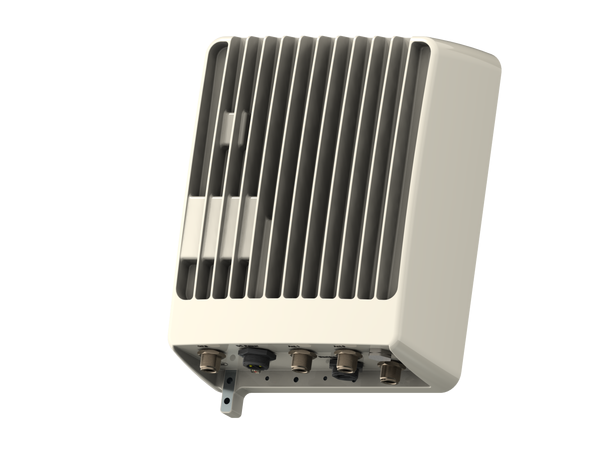

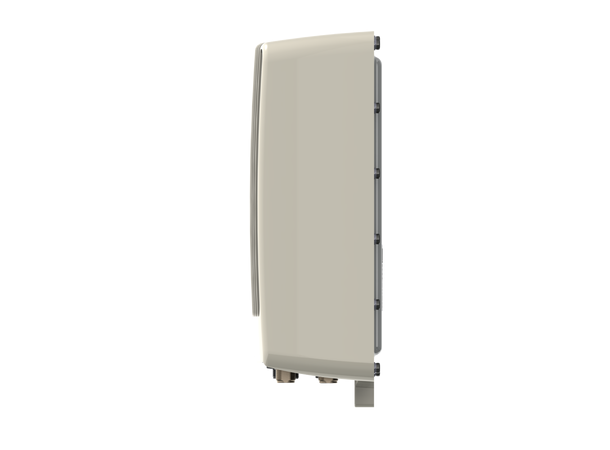

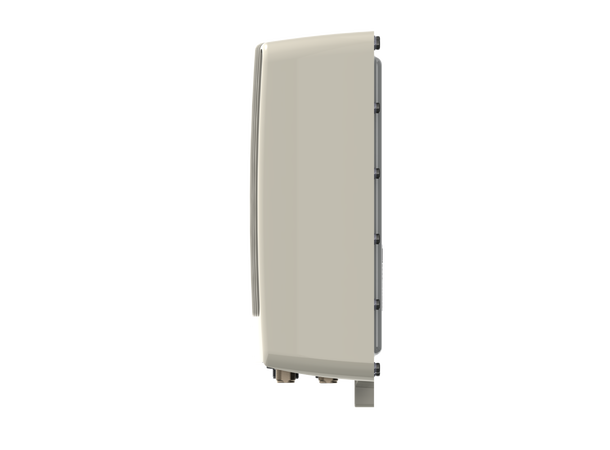

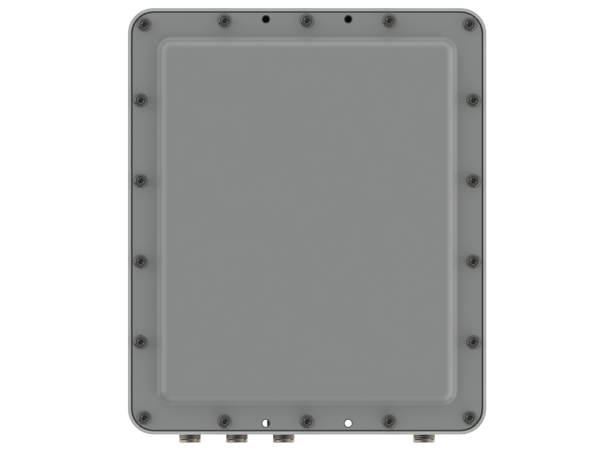

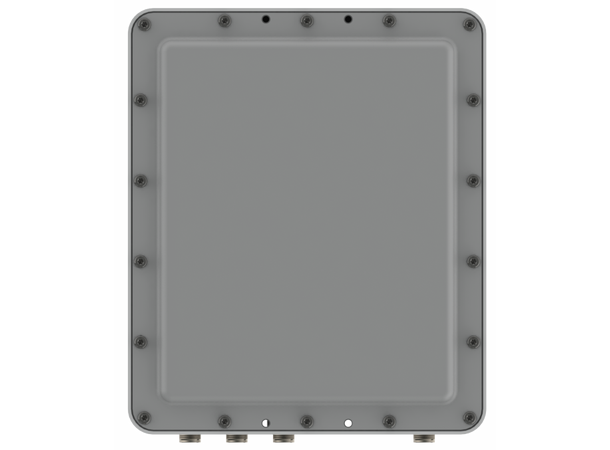

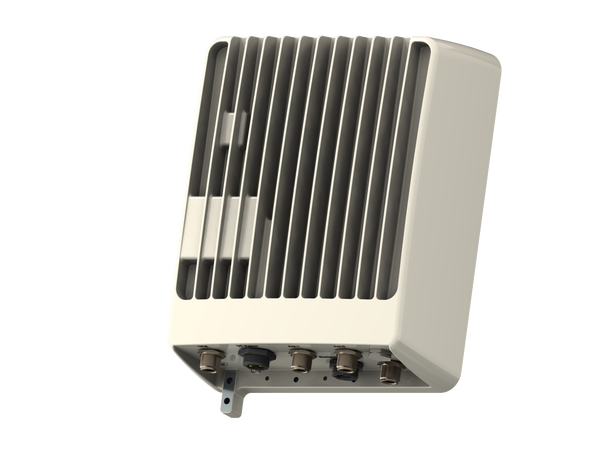

The TEKTELIC KONA Mega EU IoT Gateway is a high-performance, carrier-grade LoRaWAN gateway designed for large-scale IoT network deployments in the global EU868 band. This industrial-grade gateway delivers superior RF performance through its innovative multiple antenna configuration, making it ideal for both public and private network operators requiring reliable and scalable IoT connectivity solutions.
Featuring built-in custom High-Q RF Cavity filters, the gateway provides exceptional interference mitigation and superior out-of-band rejection, ensuring reliable communication in challenging RF environments. The dual antenna configuration with Rx diversity for 16+16 channels, combined with high linearity receivers, enables superior network coverage and improved end-device battery performance.
Key Differentiators
- Network Performance
- Superior RF performance with dual antenna Rx diversity for 16+16 channels
- Custom High-Q RF Cavity filters for exceptional interference mitigation
- Day-one scalability supporting millions of messages per day
- Carrier-Grade Design
- 450,000 hours MTBF for maximum reliability
- Support for in-service configuration and software updates
- Environmentally hardened IP67 aluminum enclosure
- Deployment Flexibility
- Multiple backhaul options including 3G/4G cellular and Ethernet
- Integrated GPS with holdover capability
- Full ecosystem integration with LoRa network servers and sensors
Key Features
- Radio Capabilities
- Time Duplex 16+16 Rx / 4 Tx channels
- Dual antenna support with Rx diversity
- Double simultaneous Tx channels
- Up to 14 dBm Tx power per antenna
- Advanced Features
- High linearity LNA/receiver design
- Integrated bandpass filter for interference rejection
- Precise network synchronization with GPS
- Geolocation support for asset tracking
Technical Specifications
KONA Mega EU Gateway Specifications
| Specification |
Value |
| LoRa Frequency Band |
EU ISM Band (863-870 MHz) |
| Rx Sensitivity |
-142 dBm (SF12, 293 bits/sec) |
| Rx Dynamic Range |
70 dB Analog, 100+ dB Digital |
| Power Requirements |
37-57 VDC or PoE++ (802.3bt) |
| Environmental Rating |
IP67 |
| Operating Temperature |
-40°C to +60°C |
| Dimensions |
222 × 265 × 101 mm |
| Weight |
5 kg |
Interfaces & Connectivity
- Network Interfaces
- Ethernet: RJ-45 with PoE++ (802.3bt) support
- Cellular: Integrated 3G/4G modem with N-Type connector
- LoRa: Dual N-Type antenna ports (2nd port optional)
- GPS: N-Type connector for precise timing
- Management Features
- DHCPv4 client and TFTP/HTTP servers
- Remote software upgrade and system health monitoring
- Access control list and firewall management
- Field configuration tool support
Certifications & Standards
- Radio Equipment Directive 2014/53/EU
- ETSI EN 300 019-2 Environmental Standard
- IP67 Environmental Protection
