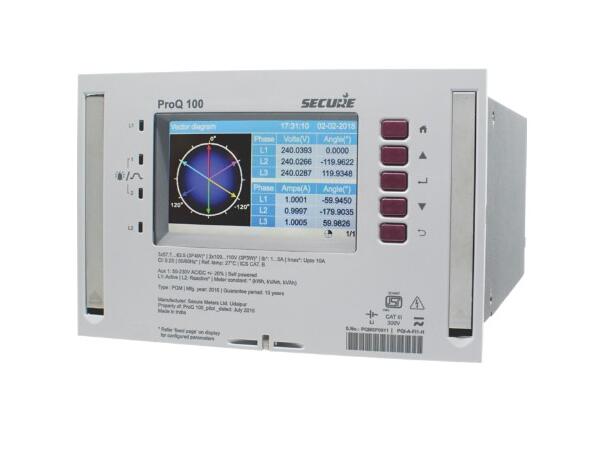

ProQ 100 - Grid metering with power quality

High precision, comprehensive power quality measurements multiple communications channels, easy integration.

ProQ 100 is a true innovation that combines precision class revenue metering with leading edge power quality measurement.

The product range covers HV and MV configurations for applications at different hierarchy levels in generation, transmission and distribution grids.

ProQ 100 provides a wide range of features and meets high accuracy standards while providing power quality measurements in line with the latest power quality standards.

ProQ 100 is well suited for use by grid operators and industrial customers to:

• Monitor and manage electricity grids and energy contracts.
• Monitor supply quality and ensure regulatory compliance.
• Analyze industrial plant supply networks for disturbances (origin) and impact on sensitive loads.

With the flexibility to retrofit/upgrade existing systems, multiple communications channels and standard protocol support, ProQ 100 is easy to integrate with multiple systems for simultaneous communications (e.g. power quality monitoring, SCADA and remote meter reading applications).

Features:

• PQ measurements certified to IEC 61000-4-30 class A and instrument to IEC 62586-2.
• Power quality events logging for sag, swell, interruption and rapid voltage change.
• Harmonics and inter-harmonics up to 50th order.
• Distortion factors THD, TDD, THD-I, THD2550 and waveform quality indices e.g. K factor and crest factor.
• Transients recording and reporting.
• Unbalance including positive, negative and zero sequence measurements.
• Comprehensive logging of instantaneous, energy and power quality parameters (dual loggers).
• Voltage and current recording for pre and post event analysis with RMS value (half-cycle) capture.
• Built-in web server to access real-time values and powerful analytical capability through ProQ View. Power Quality data interface using PQDIF over ftp.
