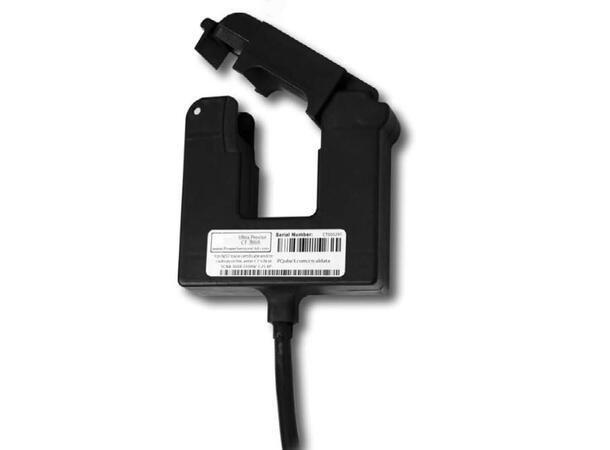

Powerside Ultra-Precise 5A Split Core CT
Powerside's ultra-precise shielded split-core CTs are specially designed to meet the most demanding accuracy specifications.
They are quick to install and safe to operate.
They are the ideal accessory to use for very accurate current and power measurements.
For use with your PQube Power Analyzers 3, 3r, 3LV & 3e current inputs.
The split-core CT provides low voltage linear output, proportional to the measured current.They can be used with all 8 current channels on PQube® 3/3r/3LV, or all 14 current channels of the PQube® 3e.
Features:
- Easy, safe, and quick to install: clamp around the conductor & connect it to the PQube® 3 series.
- Fully shielded double-insulated cable for noise immunity.
- Large range of rated currents: 5A through 300A.
- Specifically designed for excellent frequency response in measuring harmonics up to the 50th harmonic at 50/60 Hz.
- Ultra-accurate certified revenue grade exceeds ANSI C12.20 Class 0.2, IEC 62053-22 Class 0.2 S, IEC 61000-4-7 Class I harmonic accuracy.
- Calibrated with a NIST-trace certificate that combines both the CT and PQube 3 for accuracy and is UL Listed.
