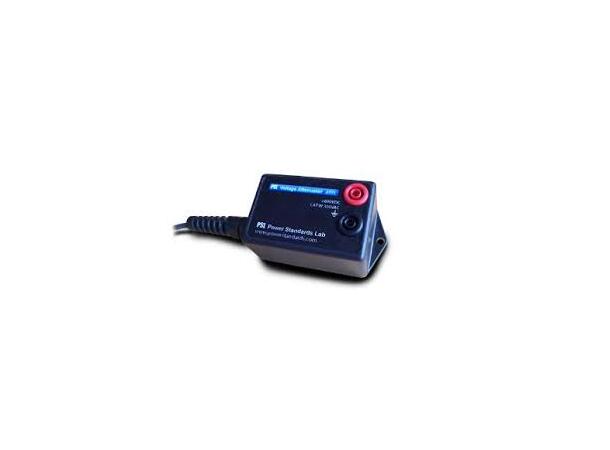

Powerside ATT1-1200V.

Compact voltage and current module for connection to PQube 3 analog channels.
Great for applications where high voltage DC monitoring is required. Can also be used to monitor high voltage AC.

Features:

• ±1200 VDC or 600 VAC, CAT IV
• Over 15 kilo-volts of isolation to protect against faults
• High voltage terminals are standard shrouded safety banana jacks – on 0.75 in centers, just like a digital voltmeter
• Five meter shielded cable to permit location of module in high voltage area
• Module dimensions: 102 mm x 51 mm x 38 mm
