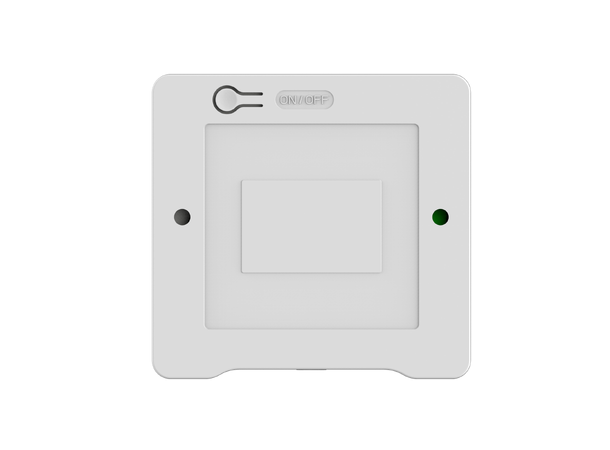

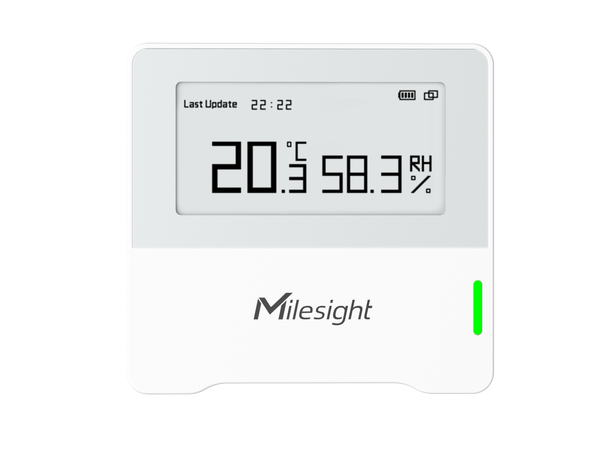

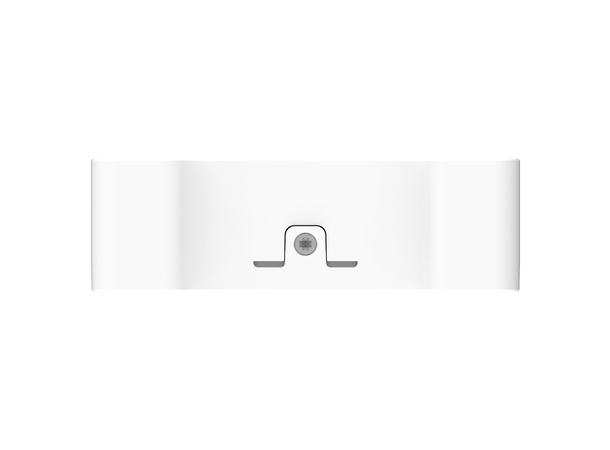

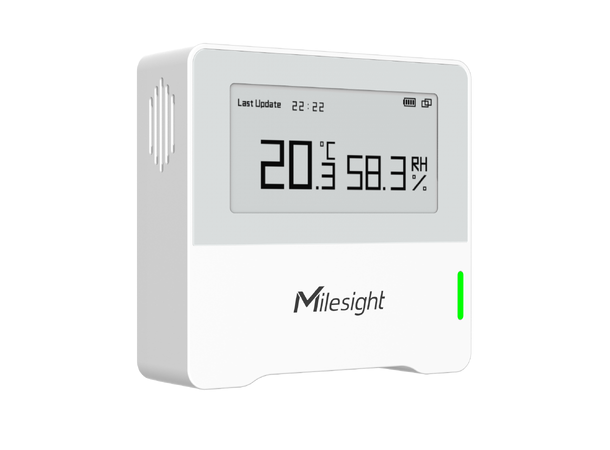

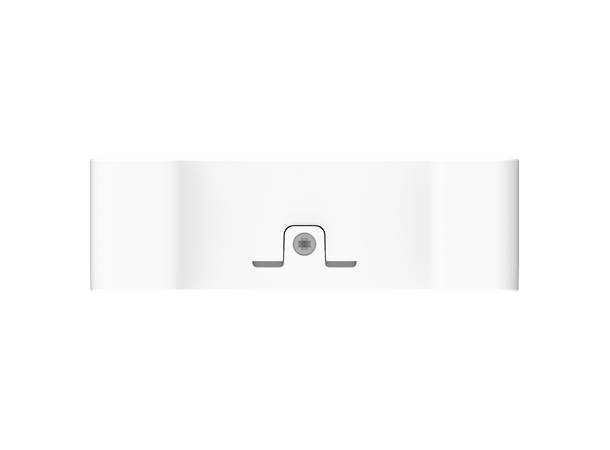

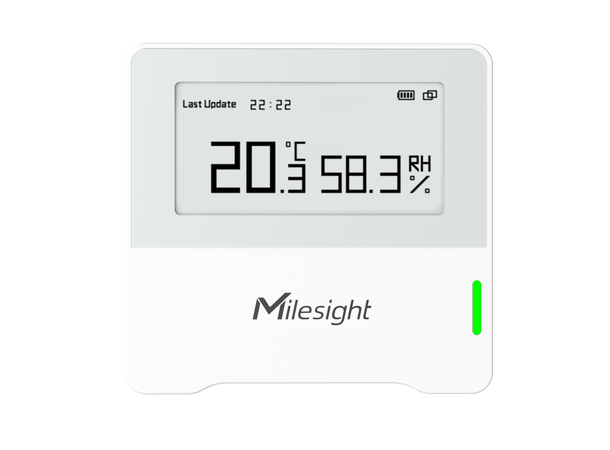

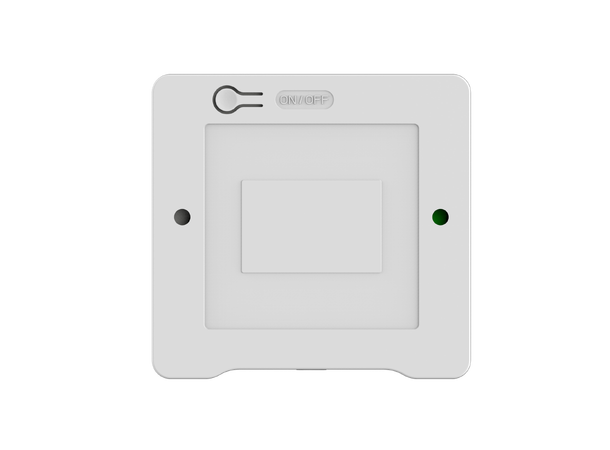

Milesight AM102 - Indoor Ambience Monitoring Sensor
LoRaWAN Temperature & Humidity, E-ink Display
The Milesight AM102 is a compact indoor ambience monitoring sensor for measurement of temperature and humidity. Featuring a high-visibility E-ink screen, this device provides instant visual feedback on environmental conditions, allowing users to quickly monitor and quantify indoor comfort levels. With its professional-grade Sensirion sensor capable of detecting subtle changes in temperature and humidity, the AM102 delivers exceptional accuracy for offices, classrooms, hospitals, retail spaces, and other indoor environments.
Leveraging LoRaWAN® technology for wireless data transmission, the AM102 operates on an ultra-low power consumption framework that delivers an impressive 7+ year battery life from its replaceable batteries. The device combines local display capabilities with remote monitoring options, storing up to 1280 historical records that can be accessed via NFC configuration or viewed through the Milesight IoT Cloud solution for comprehensive data management. With flexible installation options and smart power-saving features like hibernation mode, the AM102 offers a versatile and reliable solution for maintaining optimal indoor environmental conditions.
KEY FEATURES
- Advanced Sensing Technology
- Sensirion high-precision sensor for accurate temperature and humidity detection
- Temperature accuracy of ±0.2°C with 0.1°C resolution
- Humidity accuracy of ±2% RH with 0.5% RH resolution
- User-Friendly Interface
- 2.13-inch E-ink screen with real-time environmental data display
- Visual indicators for quick assessment of comfort levels
- Light/dark display theme options
- Extended Battery Performance
- Over 7 years of operation without battery replacement
- Smart hibernate mode schedules to optimize power consumption
- Powered by 2 replaceable ER14505 Li-SOCl2 batteries
Typical Applications
- Commercial Environments
- Offices and meeting rooms
- Retail spaces and shopping centers
- Hotels and hospitality venues
- Educational and Healthcare Facilities
- Classrooms and lecture halls
- Hospital rooms and medical facilities
- Research laboratories
- Industrial Settings
- Manufacturing environments
- Warehouses and storage facilities
- Data centers and server rooms
Technical Specifications
| Specification |
Value |
| Temperature Sensing Range |
-20°C to 60°C |
| Temperature Accuracy |
±0.2°C |
| Temperature Resolution |
0.1°C |
| Humidity Sensing Range |
0% to 100% RH |
| Humidity Accuracy |
±2% RH |
| Humidity Resolution |
0.5% RH |
| Wireless Technology |
LoRaWAN® |
| Frequency Bands |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Transmit Power |
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Display |
2.13-inch Black & White E-Ink Screen |
| Power Supply |
2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries |
| Battery Life |
Over 7 Years (10 min interval, 25°C) |
| Operating Temperature |
-20°C to 60°C (E-Ink Screen: 0°C to 40°C) |
| Relative Humidity Operating Range |
0% to 95% (non-condensing) |
| Ingress Protection |
IP30 |
| Dimensions |
68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in) |
| Installation |
Wall Screw Mounting, 3M Tape Mounting |
Additional Features
- Data Management
- Local storage for 1280 historical records
- Data retransmission to prevent data loss
- Compatible with Milesight IoT Cloud for visualization and alerts
- Configuration & Connectivity
- Built-in NFC for easy wireless configuration
- LoRaWAN® Class A operation mode
- Compliant with standard LoRaWAN® gateways and network servers
- Power-Saving Features
- Smart screen mode to reduce power consumption when values remain stable
- Configurable screen refresh intervals
- Scheduled hibernation periods to maximize battery life
Certifications & Standards
- CE
- FCC
- RoHS
- LoRa Alliance® Certification
