ISA DRTS/34.

Automatic Relay Test System.

DRTS 34 is the most powerful diagnostic test set designed to perform accurate tests on protection relays, transducers, energy and power quality meters.
This advanced test equipment is also thought to satisfy all the needs related to commissioning and substation maintenance.
3 Current and 4 Voltage generators simultaneously available.

DRTS 34 is the leading edge, most powerful and accurate relay, energy meters (class 0.1) and transducers test set manufactured by ISA.
The locally and PC controlled test set generates high precision (0.05% accuracy) signals using multiple DSP technology.

Its powerful current outputs (3 x 32 A at 430 VA) and voltage outputs (3 x 300 V at 100 VA) allow to test any type of relays including electromechanical relays.
The test sets integrate the IEC 61850 protocol interface for testing relay with Ethernet-based substation communication protocol.

Operator interface

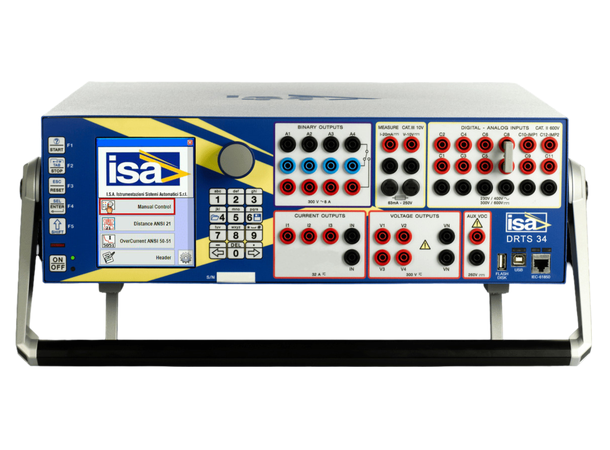

DRTS 34 can be operated directly from the front panel by means of a large color graphical display, a rotary selector, a keypad and function keys.
Two PC interfaces, USB and Ethernet, allow to control the test set with the advanced testing software TDMS.
It can also be operated by the optional Local Touch Control (touch screen) module that can be used attached or detached from the test set.
