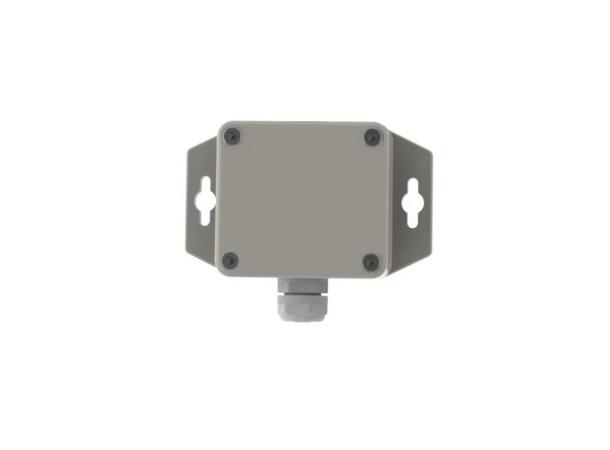

Elsys ELT2i - LoRaWAN Multi sensor

IP67, Internal Batteries, Integrated Antenna

ELT2 is a multi-interface LoRaWAN sensor with flexible inputs, internal environmental sensors and a robust IP67 enclosure. It is easy to install and configure to form your solution. Using the ELT2 you can connect to the sensor, actuator or other signal sources of your choice, enabling huge flexibilitiy in terms of applications.

The ELT2 has two generic, programmable inputs for high flexibility. You can configure ELT-2 for external temperature probes, pulse counting, analog-input 0-10V, digital-input, water leak sensors, switch, distance sensors, soil moisture sensors, and many more options. In addition the ELT2 can be equiped with add-on modules to get extra features like external PT1000 sensors, load cell input, or output control.

ELT2 also has 3 internal sensors; temperature, humidity, barometric pressure as well as an accellerometer to detect movement / positioning.

The battery life is estimated to be up to 10 years but depends on sample interval, transmit interval, data rate, and environmental factors. It is powered by one 3,6V AA lithium battery. Battery life can be estimated using Elsys' battery calculator.

All Elsys sensors are equipped with NFC for easy configuration with an Android phone. You can change the sample rate, data rate, encryption keys, triggers, activation, and much more in the application “Sensor Settings“.  All Elsys sensors are built on the LoRaWAN® stack from Semtech.

Battery not included

For difficult coverage conditions, the ELT2 with external antenna could be a better option.
