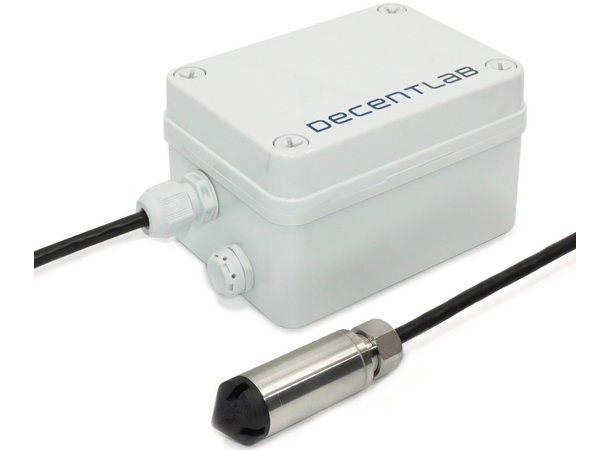

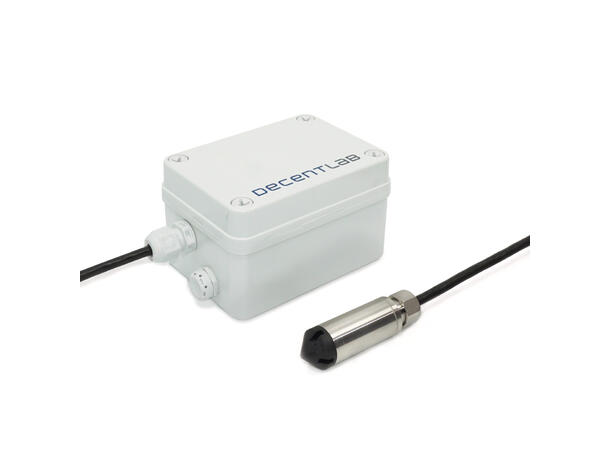

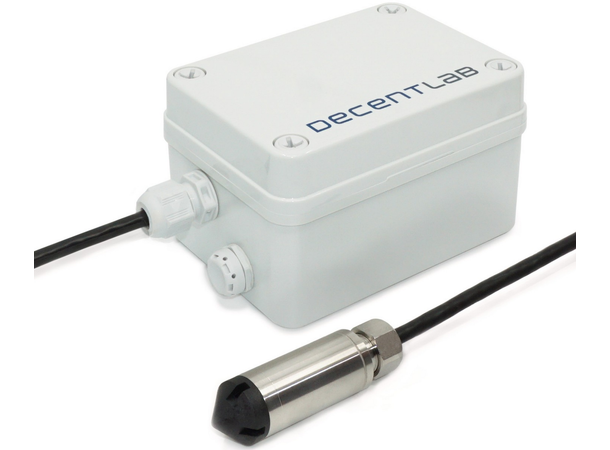

Decentlab DL-PR26 - Industrial LoRaWAN Pressure and Temperature Sensor
Robust Liquid Level & Temperature Monitoring, 0-1 bar, IP67-rated, 10m Cable
The DL-PR26 is an industrial-grade pressure and temperature sensor that enables precise liquid level monitoring in a wide range of applications. The device measures relative pressure between the sensor head and cable end, providing accurate depth measurements up to 10 meters (1 bar). Integrated temperature sensing ensures accuracy through automatic temperature compensation.
Built for harsh environments, the sensor features a weatherproof IP67-rated polycarbonate enclosure and stainless steel AISI 316L sensor head, ensuring durability in outdoor and underwater installations. Real-time data is transmitted via standard LoRaWAN® technology, ensuring seamless integration with any LoRaWAN network infrastructure. With advanced power management, the device operates unattended for up to 11.4 years on standard batteries while maintaining reliable long-range communication.
KEY FEATURES
Long-Range Wireless Communication
- Integrated LoRaWAN communication with >10 km range (line of sight)
- Enterprise-grade AES-128 data encryption
- Compatible with all LoRaWAN network providers
- Adaptive data rate for optimal transmission
Maintenance-Free Operation
- Extended Battery Performance
- 11.4-year battery life at 10-minute measurement intervals
- Uses standard alkaline C-type batteries for easy replacement
- Ultra-low power consumption (= 0.5 mW typical)
Industrial-Grade Construction
- Robust Design
- IP67-rated weatherproof enclosure
- Impact and UV-resistant polycarbonate housing
- Stainless steel AISI 316L sensor head
- Professional Installation
- 10-meter polyethylene sensor cable
- Standard M4 mounting points
- PTFE membrane pressure equalizer
Typical Applications
- Water Management
- Municipal water level monitoring
- Wastewater treatment plant monitoring
- Hydropower dam and reservoir level measurement
- Industrial Monitoring
- Tank level monitoring
- Groundwater level measurement
- Process water monitoring
- Environmental Monitoring
- River and stream level monitoring
- Flood monitoring systems
- Environmental research applications
Technical Specifications
Sensor Specifications
| Specification |
Value |
| Pressure Range |
0 ... 1 bar (0 ... 10 m water column) |
| Resolution |
0.000030 bar (0.3 mm) |
| Temperature Range |
-40 ... +110 °C |
| Measurement Precision |
±0.15% of full scale |
Certifications & Standards
- CE compliant
- Radio Equipment Directive (RED) 2014/53/EU
- IP67 environmental protection rating
