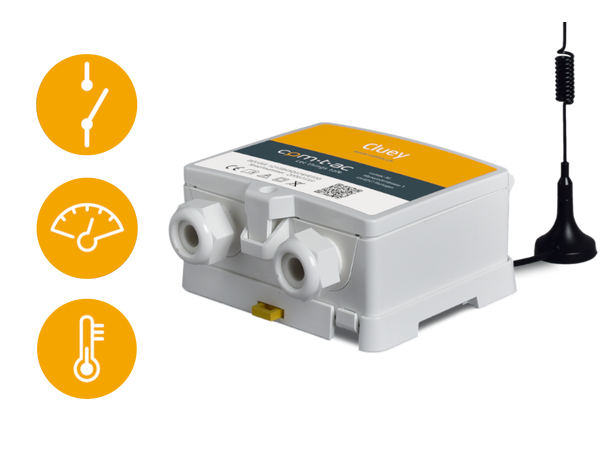

Comtac Cluey TM NBM - NB-IoT/LTE-M Monitor & Controller

IP65, < 4xPT100/1000, < 6 x Digital Inputs

The Cluey is a smart controller designed for monitoring and control tasks in electricity, water or other infrastructure networks. Built in a robust housing with IP65 protection and designed to suit a wide range of use cases and applications. Based on a LoRaWAN design, this NB-IoT Controller is extremely power efficient, and is especially suitable for applications based on battery or alternative power sources.

Select a configuration that suits your application, wire the device accordingly and set your individual parameters. With the controller and monitoring intelligence already present in the Cluey, there is no need to program! This saves you a lot of time and exhausting project work to find the right configuration.

Save power by only transmitting when necessary; the Cluey uses clever signal processing allowing for threshold monitoring and other logical operations to support event driven and efficient radio transmission. This reduces uneccessary transmissions and consequently minimizes power consumption.

For added flexibility the Cluey can be either battery powered, with a lifetime of up to 10+ years, or powered by 24VDC for continous operation. If normally powered by mains, the battery is used for backup in the even of power failure.

NB-IoT / LTE-M support brings flexibility for applications, NB-IoT is best suited for reporting applications where power consumption if of highest priority. LTE-M will be more suitable if downlink and frequent report intervals is necessary.

Key Features

- 4 x Temperature inputs

• 8 ports; configurable for 4 x 2-wire sensors or 2 x 4-wire sensors
• Modes of signalling: Interval, delta-based, threshold-based

- 6 x Configurable Signal Inputs

• Digital (NO/NC)
• Pulse Counting
• Analoge Inputs (0-10VDC or 4-20mA), Signal on intervals or on exceeding thresholds

- Event triggered and/or time synchronized cyclic transmission

- Time-stamped events and transmissions

- Operating power: 24VDC external

- IP65 enclosure with DIN-rail mouting

- Life sign messaging containig device and battery status

- Internal antenna with option for external antenna if necessary
