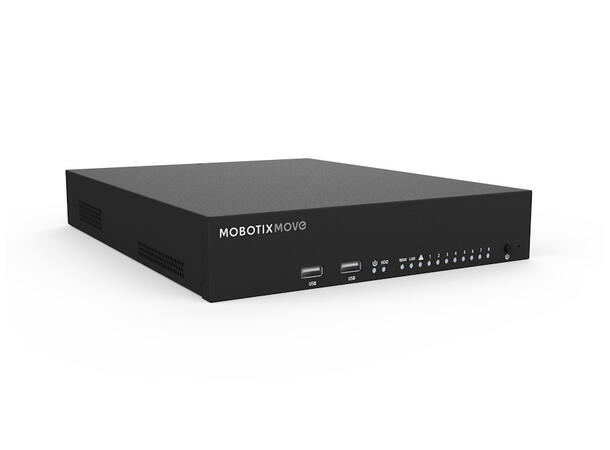

Mobotix Mx-S-NVR1B-8-POE.
The MOBOTIX MOVE NVR Plug & Play series has been exclusively designed to support the MOBOTIX MOVE IP Camera series with powerful recording by deep integration protocols out-of-the-box.
Integrated 4 GB RAM support high Resolution Video Decoding and Recording on all supported video-input channels.
The integrated 8-port PoE switch allows direct connection of IP cameras without extra power supply.
It is equipped with M.2 (M-Key) and iSCSI communication interfaces for seamless adaptation to the requirements of the installation.
The web management interface allows monitoring and configuring PoE power consumption, network connection quality and controlling the PoE power support of ONVIF S/T-conformant 3rd-party cameras.
This provides extensive flexibility in mixed camera environments.
Features:
- 2MP Full HD up to 4K (12MP) IP camera support.
- Native support of MOBOTIX MOVE, MOBOTIX IoT cameras and 3rd-party cameras via ONVIF protocol.
- H.264/H.265 live video, recording and playback.
- Integrated PoE switch with 8 ports for Plug & Play MOVE and 3rd-party camera integration.
- Can handle additional 4 Plug & Play MOVE & 3rd party cameras via external switch.
- Full HD local dual display/monitor output (HDMI/DisplayPort).
- Up to 2 x internal HDDs 3.5” SATA3 total 20TB (JBOD/Mirror).
- iOS & Android app support provides convenient mobile access to live and recorded video on the NVR.
- Central Monitoring Software MOVE CMS for central view and playback of distributed Multi-Site NVR Systems.
- Alarm I/O connectors (4 relay outputs, 4 signal inputs, 1 RS485 D+, 1 RS485 D– ports; implemented serial number RD20C00001 and higher).
- Integrated /in MOBOTIX HUB as a decentralized / remote-controlled recording and display device.
