Milesight FT101 - LoRaWAN Field Tester

Battery Powered, 4G / GPS / WiFi / Bluetooth 4.0

The Milesight Field Tester FT101 is the ultimate companion for signal assessment and optimization in LoRaWAN® networks. Featuring a 5.72-inch HD touch screen, it provides both real-time network signal testing, data logging and analysis at your fingertips, making it easier to deploy and manage LoRaWAN® devices.

Supporting external antennas, the FT101 gives you flexibility and allows you to tailor your measurements for many different use cases.

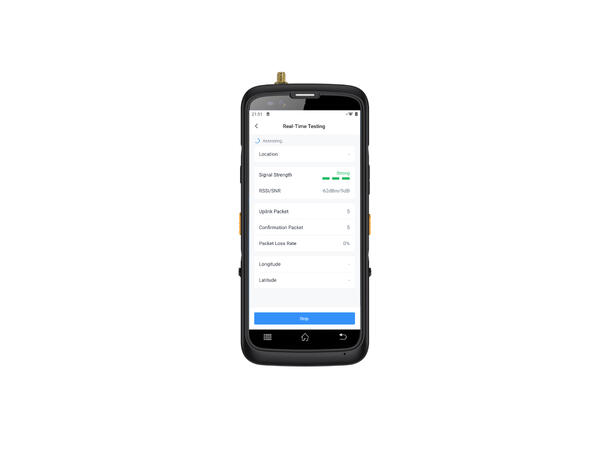

Instant Network Insights at Your Fingertips

With it's 5.72-ich HD touch screen, the Milesight Field Tester FT101 provides real-time and easy to read key metrics like RSSI, SNR and packet loss rate. This lets you quickly assess the quality of your LoRaWAN network and find the best places to deploy your sensors.

Analyze and Optimize

With the Milesight Field Tester you can quickly analyze your network in real time to;

• Understand how each gateway performs, the area they cover and the quality of signal provided.
• Analyze the impact of physical obstructions and terrain and find the ideal location for your sensors.
• Quickly assess if more gateways are needed to improve the coverage for your operations.

In addition, it is easy to configure different LoRaWAN settings such as frequency bands, channel, spreading factor, ADR and TX power to identify the ideal signal configuration at a specific location.

Geolocation, Log and export

In addidion to providing real-time data, The FT101 supports GPS, enabling you do log measured values for specific locations and later export your logs as a CSV for comprehensive analysis. The log will contain the following information;

• Signal Strength
• RSSI
• SNR
• Uplink packets
• Confirm packet
• Packet loss (%)
• Spreading Factor
• TX power
• Longitude and Latitude
• Location Name

Take a picture

The FT101 features a 13MP camera on the backside, allowing you to document your site or installations as you go.

Configure sensors

The FT101 in many ways function as a smart phone. It is based on an Android platform, allowing you to install the Milesight ToolBox app directly to the device. Now you can configure Milesight sensors via NFC easily.

Measure, analyze, install and configure in one go!

Battery operation

FT101 features a 4300mAh integrated battery, allowing for up to 8 hours of continouos operation and up to 7 days of standby. For extended operational times, connect a battery bank directy using the USB-C port.
