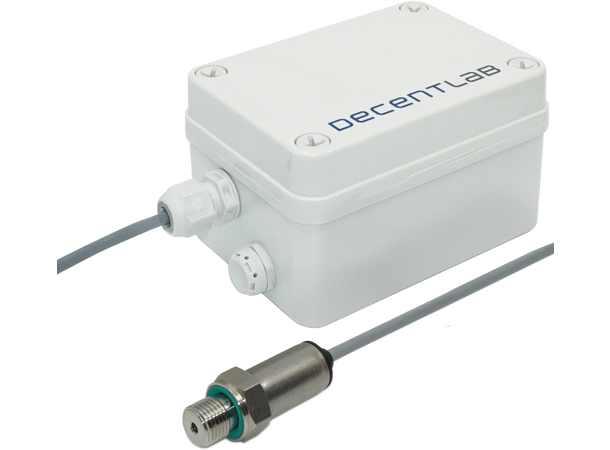

Decentlab DL-PR21 - Pressure / Liquid Level sensor for LoRaWAN
IP67, Integrated battery & antenna, G1/4'' threading
Variant: -1 to 30 BAR measurement range
The DL-PR21 enables remote monitoring of pressure in pipelines or tanks. It measures the
pressure at the G 1/4” pipe connection relative to the pressure at the cable entry.
When the sensor head
is mounted at the bottom of a water tank, the relative pressure indicates the depth of the sensor head
(fill level). In water, the relative pressure of 1 bar equals to a depth of approximately 10 m.
The device also records the temperature of the sensor head. The temperature reading is used for
temperature compensation.
Decentlab DL-MBX is a LoRaWAN based device, compatible with any network server, allowing for ease of installation, long range wireless communication and long battery life of up to 14 years in the field.
Key Features
- LoRaWAN®-enabled piezoresistive pressure sensor / depth gauge
- Range: -1 ... 30 BAR
- Temperature range: -40 … 110 °C
- Cable length: 2 m (Default, other lengths at request)
- Industry standard pipe connection G 1/4” (NPT 1/4” available on request)
- Compatible with LoRaWAN® networks of any provider
- Place and measure: no setup required
- Configurable via command line interface and downlink command interface
- Unattended real-time monitoring for several (<14) years without replacing batteries
- Robust polycarbonate enclosure: weatherproof, impact-, UV-resistant (IP67)
- Standard alkaline (C-type) batteries
- CE compliant, Radio Equipment Directive (RED) 2014/53/EU
Typical Applications
- Outdoor remote monitoring
- Level / depth monitoring in tanks for liquids
- Pressure monitoring in pipelines and tanks
- District heating monitoring, leakage detection
- Water distribution network: monitor pressure, control pumps
- Relative pressure measurement
