Arcteq AQ-AST-02 Arc Sensor Tester

The AQ-AST-02 arc sensor tester allows for the field-testing of AQ-02 point sensors when conducting commissioing tests of complet arc protection system. the tester helps to confirm that the system is wired and installed correctly by following the system's signal propagation.



Features:

  • Activates either locally (with the injector included in the test kit) or externally with third-party testing equipment.
  • Tests the correct operation of the circuit breaker failure protection function.
  • Is compatible with all AQ 100 series host units in both low-voltage and medium-voltage applications.

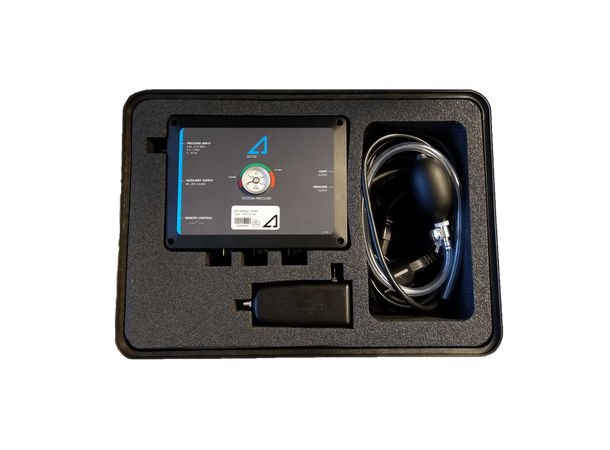

Device parts:

  • One (1) waterproof protective field case
  • One (1) control unit
  • One (1) injector
  • One (1) signal and pressure cable
  • One (1) auxiliary power cable
  • One (1) pressure pump with a hose
