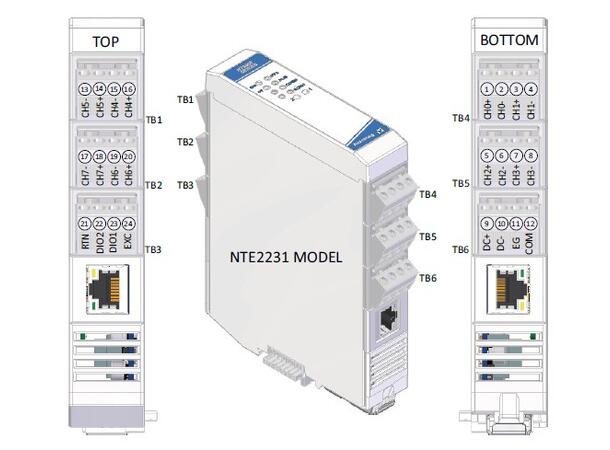

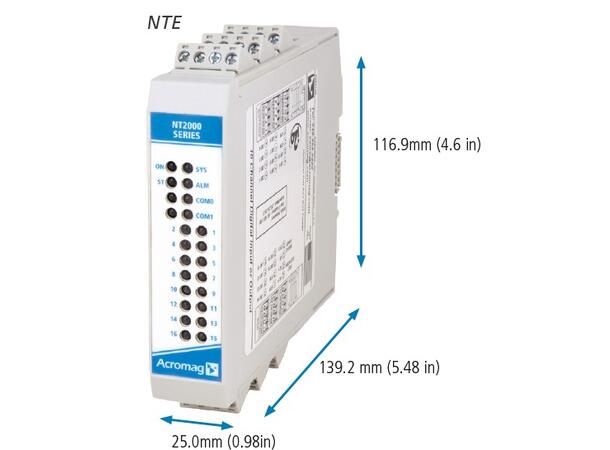

Acromag NTE 2231-1111 - 8xAI + 2xDI/O, 2xETH (Modbus TCP, Ethernet/IP, Profinet).

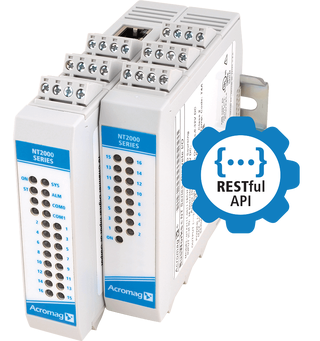

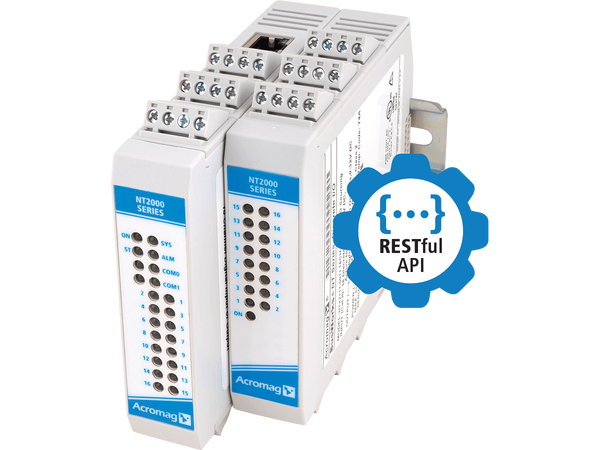

Acromag’s Busworks® NT Series lets you add expansion I/O modules for a high-density, cost-efficient remote I/O solution.

Base unit NTE Ethernet models handle the network communication and interface up to 16 analog or digital I/O channels for remote monitoring or control applications.

Multi-Protocol support.

The NTE Ethernet I/O modules are pre-programmed to support Modbus/TCP, Ethernet/IP* and Profinet* protocols. Just select which is to be used.
Modules also support direct i2o® peer-to-peer communication without a master.

• Integrated I/O expansion bus
• Up to 64 I/O channels per port
• Mix analog, digital and temperature I/O on one port
• i2o peer-to-peer or multicast communications
• Rugged design, -40 to 70°C
• Hazardous location approvals

Easy setup from anywhere with a web browser.

NTE Ethernet I/O modules have a built-in web server for convenient configuration without installing any software.

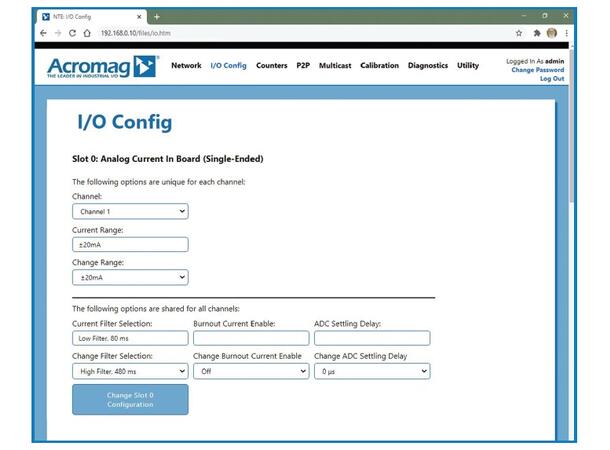

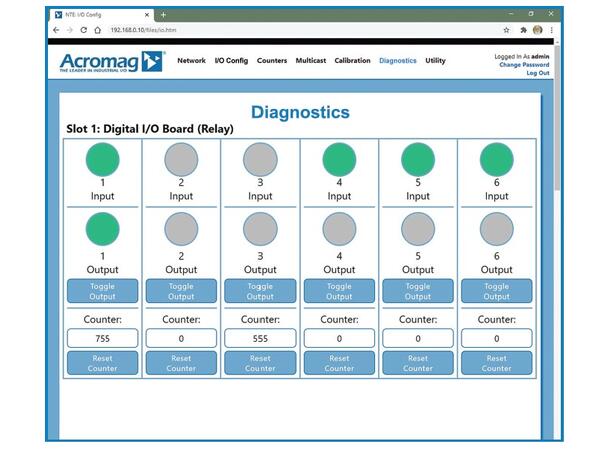

Several web pages lead you through the options to set your IP addresses, protocol, and I/O parameters. A diagnostics page lets you monitor I/O values from your PC, tablet or smartphone.

Advanced features for IIoT and local control logic functions.

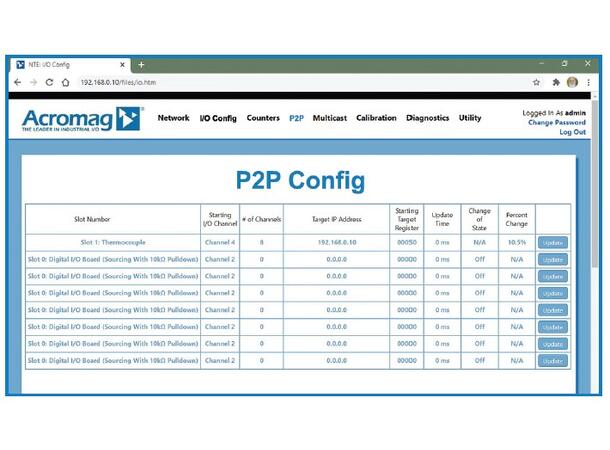

The configuration pages will help you quickly setup advanced capabilities such as peer-to-peer communication, conditional logic computation, and alarm output.

• Peer-to-peer communication
• Counter/timers
• IF/THEN/ELSE logic*
• Alarm output*
• RESTful APIs*
• OPC-UA server
• MQTT support*
• Field upgradeable
